2318770-3

Active

TE Connectivity Raychem Cable Protection

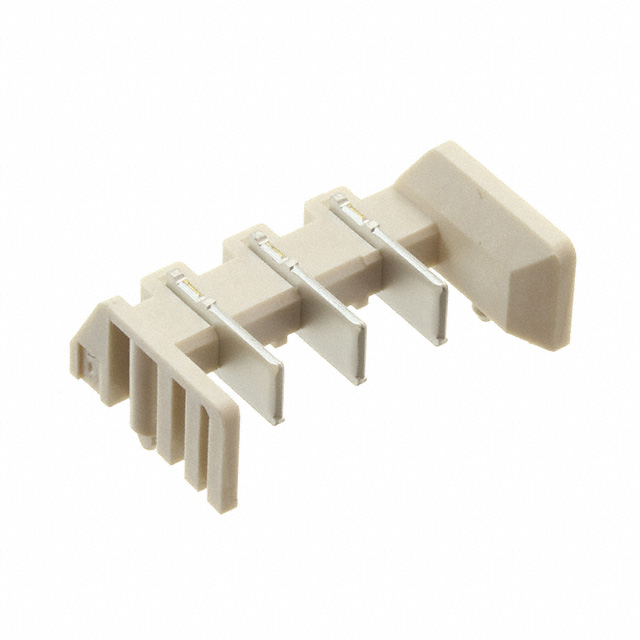

WIREMATE 2-PIECE 5MM HDR ASSY, 3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2318770-3

Active

TE Connectivity Raychem Cable Protection

WIREMATE 2-PIECE 5MM HDR ASSY, 3

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2318770-3

Color	Natural
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Features	Board Guide
Header Orientation	90°, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height [z]	6.4 mm
Insulation Height [z]	0.252 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Levels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Termination Style	Solder
Type	Header, Blade Pins
Voltage - UL	250 V

BUCHANAN WireMate Two-Piece Poke-In Series Series

Pluggable Terminal Blocks 8MM HDR ASSY, 4 POS WIREMATE 2-PIECE

Part	Number of Positions	Pitch [x]	Pitch [x]	Insulation Height [z]	Insulation Height [z]	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Color	Contact Mating Finish	Voltage - UL	Housing Material	Contact Material	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Mounting Type	Material Flammability Rating	Type	Features	Positions Per Level	Operating Temperature [Max]	Operating Temperature [Min]	Wire Strip Length	Header Orientation
TE Connectivity Raychem Cable Protection 2319461-6	6	5 mm	0.197 in	17 mm	0.669 "	Screwless	0.2 mm²	0.82 mm²	Natural	Tin	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	18 AWG	24 AWG	1	Panel Mount Snap-In	UL94 V-0	Blade Sockets Plug	Lever Actuated	6	85 °C	-40 °C	10 mm
TE Connectivity Raychem Cable Protection 2319461-4	4	5 mm	0.197 in	17 mm	0.669 "	Screwless	0.2 mm²	0.82 mm²	Natural	Tin	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	18 AWG	24 AWG	1	Panel Mount Snap-In	UL94 V-0	Blade Sockets Plug	Lever Actuated	4	85 °C	-40 °C	10 mm
TE Connectivity Raychem Cable Protection 2319461-2	2	5 mm	0.197 in	17 mm	0.669 "	Screwless			Natural	Tin	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	18 AWG	24 AWG	1	Panel Mount Snap-In	UL94 V-0	Blade Sockets Plug	Lever Actuated	2	85 °C	-40 °C	10 mm
TE Connectivity Raychem Cable Protection 2318770-4	4	5 mm	0.197 in	6.4 mm	0.252 in	Solder			Natural	Tin	250 V	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy			1	Surface Mount	UL94 V-0	Header Blade Pins	Board Guide	4	85 °C	-40 °C		90° Right Angle
TE Connectivity Raychem Cable Protection 2318582-4	4			17 mm	0.669 "	Screwless	0.2 mm²	0.82 mm²	Natural	Tin	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	18 AWG	24 AWG	1	Panel Mount Snap-In	UL94 V-0	Blade Sockets Plug	Lever Actuated	4	85 °C	-40 °C	10 mm
TE Connectivity Raychem Cable Protection 2318770-6	6	5 mm	0.197 in	6.4 mm	0.252 in	Solder			Natural	Tin	250 V	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy			1	Surface Mount	UL94 V-0	Header Blade Pins	Board Guide	6	85 °C	-40 °C		90° Right Angle
TE Connectivity Raychem Cable Protection 2319461-3		5 mm	0.197 in	17 mm	0.669 "	Screwless	0.2 mm²	0.82 mm²	Natural	Tin	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	18 AWG	24 AWG	1	Panel Mount Snap-In	UL94 V-0	Blade Sockets Plug	Lever Actuated	3	85 °C	-40 °C	10 mm
TE Connectivity Raychem Cable Protection 2318770-3		5 mm	0.197 in	6.4 mm	0.252 in	Solder			Natural	Tin	250 V	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy			1	Surface Mount	UL94 V-0	Header Blade Pins	Board Guide	3	85 °C	-40 °C		90° Right Angle
TE Connectivity Raychem Cable Protection 2318770-8	8	5 mm	0.197 in	6.4 mm	0.252 in	Solder			Natural	Tin	250 V	Liquid Crystal Polymer (LCP) Glass Filled	Copper Alloy			1	Surface Mount	UL94 V-0	Header Blade Pins	Board Guide	8	85 °C	-40 °C		90° Right Angle
TE Connectivity Raychem Cable Protection 2318582-5				17 mm	0.669 "	Screwless	0.2 mm²	0.82 mm²	Natural	Tin	250 V	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	18 AWG	24 AWG	1	Panel Mount Snap-In	UL94 V-0	Blade Sockets Plug	Lever Actuated	5	85 °C	-40 °C	10 mm
