2305909-3

Active

TE Connectivity Raychem Cable Protection

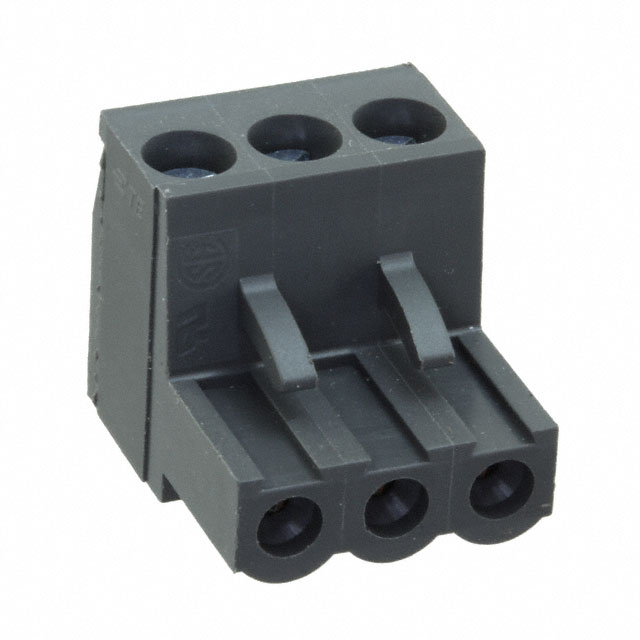

SMT TB PARALLEL PLUG, 5.0MM, 3 POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TERMINAL BLOCKS CERTIFICATE +1

2305909-3

Active

TE Connectivity Raychem Cable Protection

SMT TB PARALLEL PLUG, 5.0MM, 3 POS

Deep-Dive with AI

DocumentsDatasheet TERMINAL BLOCKS CERTIFICATE +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2305909-3

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Nickel
Housing Material	Thermoplastic
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	7 mm

BUCHANAN WireMate TB Series Series

Part	Termination Style	Pitch [x]	Pitch [x]	Number of Levels	Contact Material	Positions Per Level	Housing Material	Color	Type	Voltage - UL	Number of Positions	Contact Mating Finish	Insulation Height	Insulation Height	Current - UL	Mounting Type	Material Flammability Rating	Header Orientation	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Strip Length	Features	Plug Wire Entry
TE Connectivity Raychem Cable Protection 1-2213932-2	Solder	3.5 mm	0.138 in	1	Copper Alloy	12	Thermoplastic	Black	Header Male Pins Shrouded (4 Side)	300 V	12	Tin	7.3 mm	0.287 in	8 A	Surface Mount	UL94 V-0	90° Right Angle
TE Connectivity Raychem Cable Protection 1-2213932-0
TE Connectivity Raychem Cable Protection 1-2213932-0
TE Connectivity Raychem Cable Protection 1-2213934-0
TE Connectivity Raychem Cable Protection 2213936-5	Screw - Rising Cage Clamp	3.5 mm	0.138 in	1	Copper Alloy	5	Thermoplastic	Black	Plug Female Sockets	300 V		Tin	11 mm	0.433 in		Free Hanging (In-Line)	UL94 V-0		0.2 Nm	1.7 Lb-In	30 AWG	16 AWG
TE Connectivity Raychem Cable Protection 2213936-3	Screw	3.5 mm	0.138 in	1	Copper Alloy	3	Thermoplastic	Gray	Plug Female Sockets	300 V			11 mm	0.433 in	8 A	Free Hanging (In-Line)	UL94 V-0		0.2 Nm	1.7 Lb-In	30 AWG	16 AWG	6 mm
TE Connectivity Raychem Cable Protection 2213934-6
TE Connectivity Raychem Cable Protection 2213932-2	Solder	3.5 mm	0.138 in	1	Copper Alloy	2	Thermoplastic	Black	Header Male Pins Shrouded (4 Side)	300 V	2	Tin	7.3 mm	0.287 in	8 A	Surface Mount	UL94 V-0	90° Right Angle
TE Connectivity Raychem Cable Protection 2213935-2	Screw	5 mm	0.197 in	1	Copper Alloy	2	Thermoplastic	Black	Plug Female Sockets	300 V	2					Free Hanging (In-Line)	UL94 V-0		0.5 Nm	4.4 Lb-In	26 AWG	12 AWG		Retention Latches (Wire Side)	90 °
TE Connectivity Raychem Cable Protection 2305909-3	Screw	5 mm	0.197 in	1	Copper Alloy	3	Thermoplastic	Black	Plug Female Sockets	300 V		Nickel	15 mm	0.591 in		Free Hanging (In-Line)	UL94 V-0		0.5 Nm	4.4 Lb-In	26 AWG	12 AWG	7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.34
		10	$ 2.09
		200	$ 1.89
		1000	$ 1.53
		5000	$ 1.35

Description

General part information

BUCHANAN WireMate TB Series Series

3 Position PCB Terminal Block, Receptacle, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 180° Wire Entry Angle, BUCHANAN WireMate TB Series

Documents

Technical documentation and resources

Datasheet

TERMINAL BLOCKS CERTIFICATE

Agency Approvals

BUCHANAN WireMate Connectors Brochure

Datasheets & Catalog Pages
