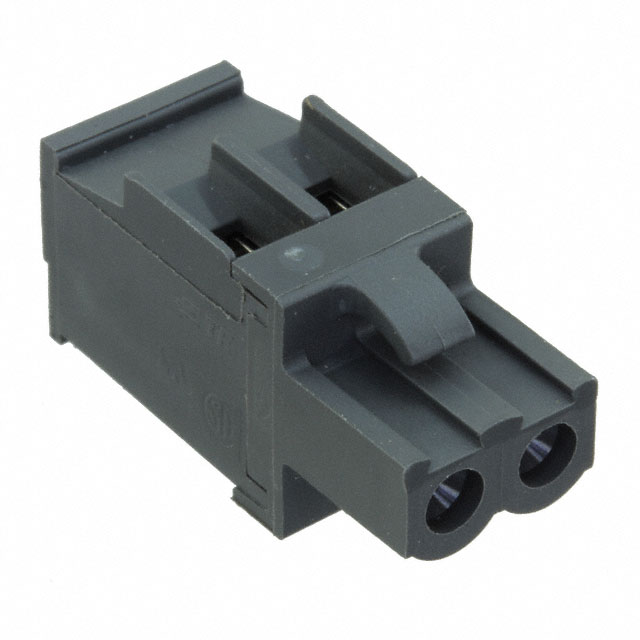

2213935-2

Active

TE Connectivity Raychem Cable Protection

SMT TB PERP PLUG, RET, 5.0MM, 2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2213935-2

Active

TE Connectivity Raychem Cable Protection

SMT TB PERP PLUG, RET, 5.0MM, 2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2213935-2

Color	Black
Contact Material	Copper Alloy
Features	Retention Latches (Wire Side)
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	90 °
Positions Per Level	2
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG

BUCHANAN WireMate TB Series Series

Part	Termination Style	Pitch [x]	Pitch [x]	Number of Levels	Contact Material	Positions Per Level	Housing Material	Color	Type	Voltage - UL	Number of Positions	Contact Mating Finish	Insulation Height	Insulation Height	Current - UL	Mounting Type	Material Flammability Rating	Header Orientation	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Strip Length	Features	Plug Wire Entry
TE Connectivity Raychem Cable Protection 1-2213932-2	Solder	3.5 mm	0.138 in	1	Copper Alloy	12	Thermoplastic	Black	Header Male Pins Shrouded (4 Side)	300 V	12	Tin	7.3 mm	0.287 in	8 A	Surface Mount	UL94 V-0	90° Right Angle
TE Connectivity Raychem Cable Protection 1-2213932-0
TE Connectivity Raychem Cable Protection 1-2213932-0
TE Connectivity Raychem Cable Protection 1-2213934-0
TE Connectivity Raychem Cable Protection 2213936-5	Screw - Rising Cage Clamp	3.5 mm	0.138 in	1	Copper Alloy	5	Thermoplastic	Black	Plug Female Sockets	300 V		Tin	11 mm	0.433 in		Free Hanging (In-Line)	UL94 V-0		0.2 Nm	1.7 Lb-In	30 AWG	16 AWG
TE Connectivity Raychem Cable Protection 2213936-3	Screw	3.5 mm	0.138 in	1	Copper Alloy	3	Thermoplastic	Gray	Plug Female Sockets	300 V			11 mm	0.433 in	8 A	Free Hanging (In-Line)	UL94 V-0		0.2 Nm	1.7 Lb-In	30 AWG	16 AWG	6 mm
TE Connectivity Raychem Cable Protection 2213934-6
TE Connectivity Raychem Cable Protection 2213932-2	Solder	3.5 mm	0.138 in	1	Copper Alloy	2	Thermoplastic	Black	Header Male Pins Shrouded (4 Side)	300 V	2	Tin	7.3 mm	0.287 in	8 A	Surface Mount	UL94 V-0	90° Right Angle
TE Connectivity Raychem Cable Protection 2213935-2	Screw	5 mm	0.197 in	1	Copper Alloy	2	Thermoplastic	Black	Plug Female Sockets	300 V	2					Free Hanging (In-Line)	UL94 V-0		0.5 Nm	4.4 Lb-In	26 AWG	12 AWG		Retention Latches (Wire Side)	90 °
TE Connectivity Raychem Cable Protection 2305909-3	Screw	5 mm	0.197 in	1	Copper Alloy	3	Thermoplastic	Black	Plug Female Sockets	300 V		Nickel	15 mm	0.591 in		Free Hanging (In-Line)	UL94 V-0		0.5 Nm	4.4 Lb-In	26 AWG	12 AWG	7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.31
		10	$ 1.20
		25	$ 1.16
		50	$ 1.15
		100	$ 1.07
		300	$ 1.05
		500	$ 1.04

Description

General part information

BUCHANAN WireMate TB Series Series

2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
