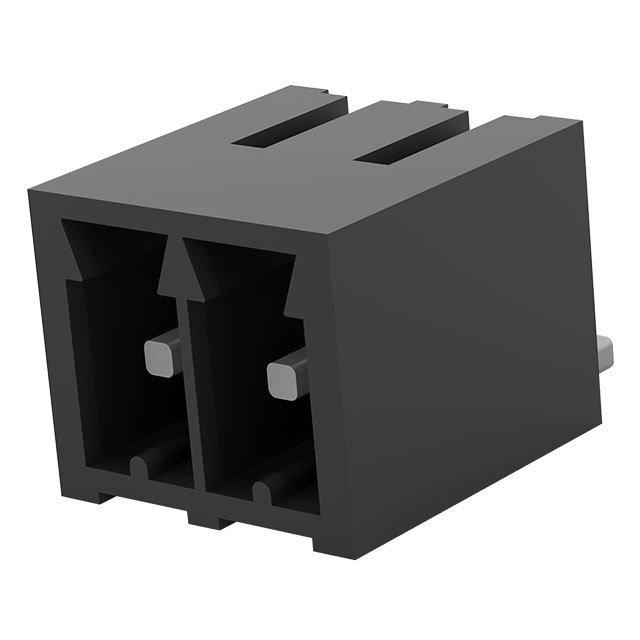

2213932-2
ActiveTE Connectivity Raychem Cable Protection
CONN WIRE TO BOARD HDR 2 POS 3.5MM SOLDER RA SMD
Deep-Dive with AI
Search across all available documentation for this part.
2213932-2
ActiveTE Connectivity Raychem Cable Protection
CONN WIRE TO BOARD HDR 2 POS 3.5MM SOLDER RA SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2213932-2 |
|---|---|
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - UL | 8 A |
| Header Orientation | 90°, Right Angle |
| Housing Material | Thermoplastic |
| Insulation Height | 7.3 mm |
| Insulation Height | 0.287 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 2 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 475 | $ 0.99 | |
| 950 | $ 0.99 | |||
| 1900 | $ 0.97 | |||
| 5225 | $ 0.89 | |||
| 5700 | $ 0.83 | |||
| 10925 | $ 0.80 | |||
| 25650 | $ 0.78 | |||
| 50825 | $ 0.77 | |||
| Digikey | Cut Tape (CT) | 1 | $ 1.41 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.13 | |||
| Digi-Reel® | 1 | $ 1.41 | ||
| 10 | $ 1.32 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.13 | |||
| Tape & Reel (TR) | 475 | $ 1.10 | ||
| 950 | $ 1.00 | |||
| 1425 | $ 0.89 | |||
| 3325 | $ 0.83 | |||
| 11875 | $ 0.76 | |||
Description
General part information
BUCHANAN WireMate TB Series Series
2 Position PCB Terminal Block, Header, 3.5 mm [.138 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Right Angle, BUCHANAN WireMate TB Series
