1-2213932-2

Active

TE Connectivity Raychem Cable Protection

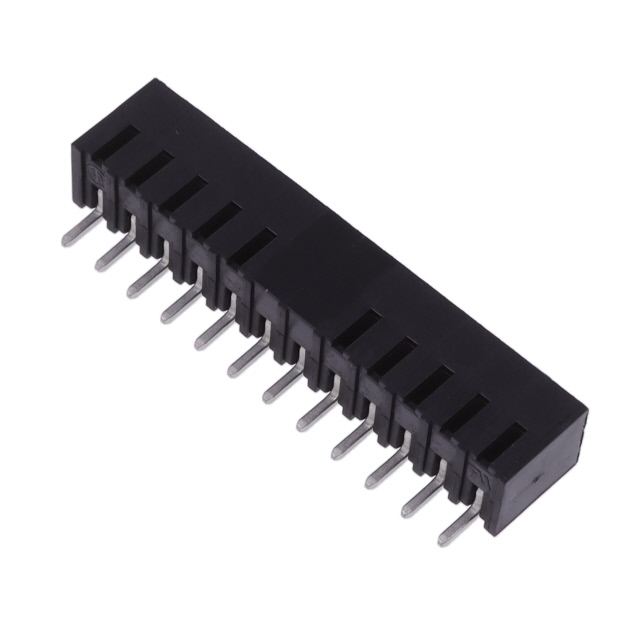

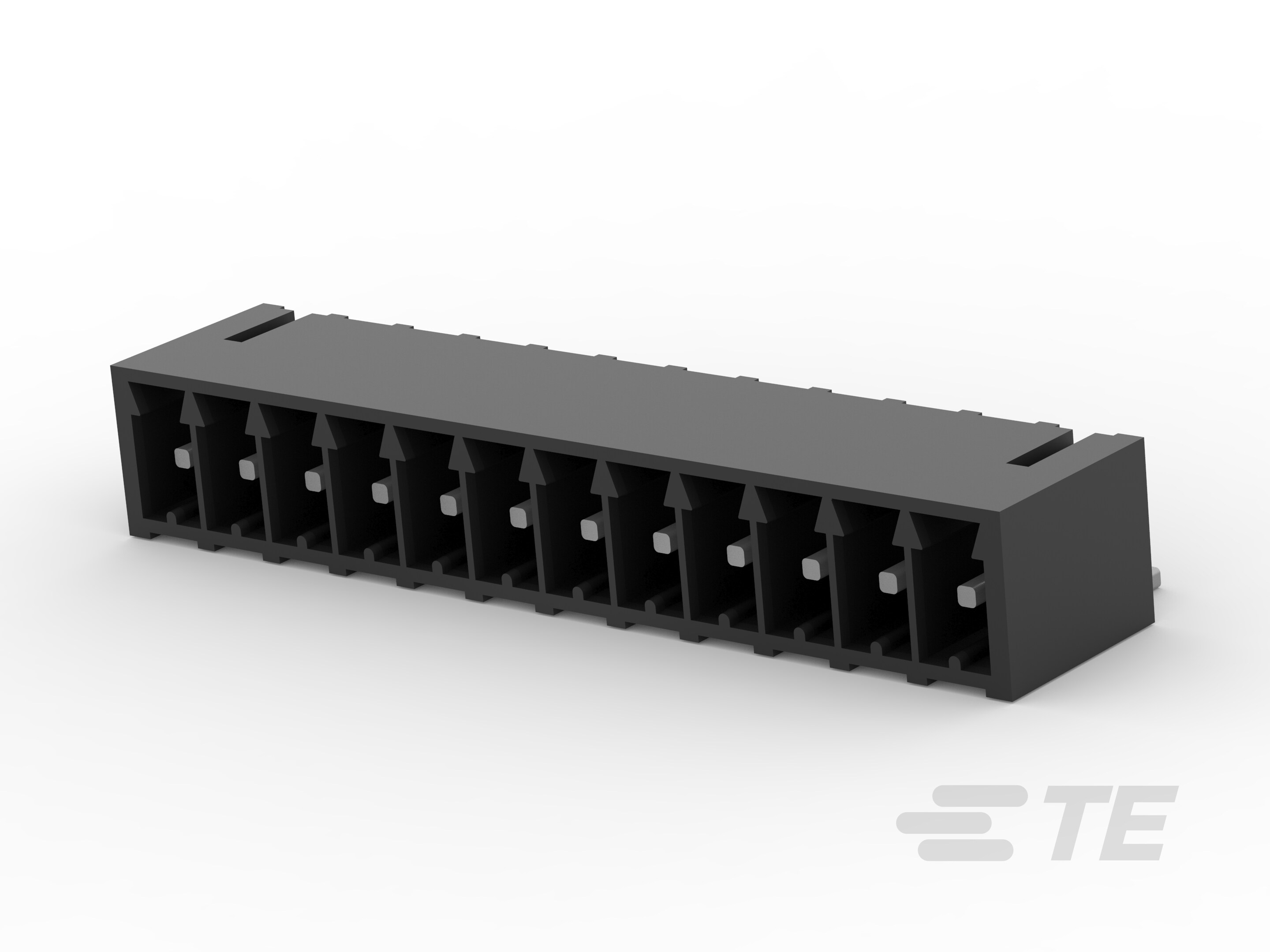

SMT TB R/A HEADER, 3.5MM, 12 POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-2213932-2

Active

TE Connectivity Raychem Cable Protection

SMT TB R/A HEADER, 3.5MM, 12 POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-2213932-2

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	8 A
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height	7.3 mm
Insulation Height	0.287 in
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Levels	1
Number of Positions	12
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	12
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

BUCHANAN WireMate TB Series Series

Part	Termination Style	Pitch [x]	Pitch [x]	Number of Levels	Contact Material	Positions Per Level	Housing Material	Color	Type	Voltage - UL	Number of Positions	Contact Mating Finish	Insulation Height	Insulation Height	Current - UL	Mounting Type	Material Flammability Rating	Header Orientation	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Strip Length	Features	Plug Wire Entry
TE Connectivity Raychem Cable Protection 1-2213932-2	Solder	3.5 mm	0.138 in	1	Copper Alloy	12	Thermoplastic	Black	Header Male Pins Shrouded (4 Side)	300 V	12	Tin	7.3 mm	0.287 in	8 A	Surface Mount	UL94 V-0	90° Right Angle
TE Connectivity Raychem Cable Protection 1-2213932-0
TE Connectivity Raychem Cable Protection 1-2213932-0
TE Connectivity Raychem Cable Protection 1-2213934-0
TE Connectivity Raychem Cable Protection 2213936-5	Screw - Rising Cage Clamp	3.5 mm	0.138 in	1	Copper Alloy	5	Thermoplastic	Black	Plug Female Sockets	300 V		Tin	11 mm	0.433 in		Free Hanging (In-Line)	UL94 V-0		0.2 Nm	1.7 Lb-In	30 AWG	16 AWG
TE Connectivity Raychem Cable Protection 2213936-3	Screw	3.5 mm	0.138 in	1	Copper Alloy	3	Thermoplastic	Gray	Plug Female Sockets	300 V			11 mm	0.433 in	8 A	Free Hanging (In-Line)	UL94 V-0		0.2 Nm	1.7 Lb-In	30 AWG	16 AWG	6 mm
TE Connectivity Raychem Cable Protection 2213934-6
TE Connectivity Raychem Cable Protection 2213932-2	Solder	3.5 mm	0.138 in	1	Copper Alloy	2	Thermoplastic	Black	Header Male Pins Shrouded (4 Side)	300 V	2	Tin	7.3 mm	0.287 in	8 A	Surface Mount	UL94 V-0	90° Right Angle
TE Connectivity Raychem Cable Protection 2213935-2	Screw	5 mm	0.197 in	1	Copper Alloy	2	Thermoplastic	Black	Plug Female Sockets	300 V	2					Free Hanging (In-Line)	UL94 V-0		0.5 Nm	4.4 Lb-In	26 AWG	12 AWG		Retention Latches (Wire Side)	90 °
TE Connectivity Raychem Cable Protection 2305909-3	Screw	5 mm	0.197 in	1	Copper Alloy	3	Thermoplastic	Black	Plug Female Sockets	300 V		Nickel	15 mm	0.591 in		Free Hanging (In-Line)	UL94 V-0		0.5 Nm	4.4 Lb-In	26 AWG	12 AWG	7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.74
		10	$ 4.15
		25	$ 4.04
		50	$ 3.95
		100	$ 3.72
	Digi-Reel®	1	$ 4.74
		10	$ 4.15
		25	$ 4.04
		50	$ 3.95
		100	$ 3.72
	Tape & Reel (TR)	475	$ 3.68

Description

General part information

BUCHANAN WireMate TB Series Series

12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Surface Mount
