2106053-2

Active

TE Connectivity Raychem Cable Protection

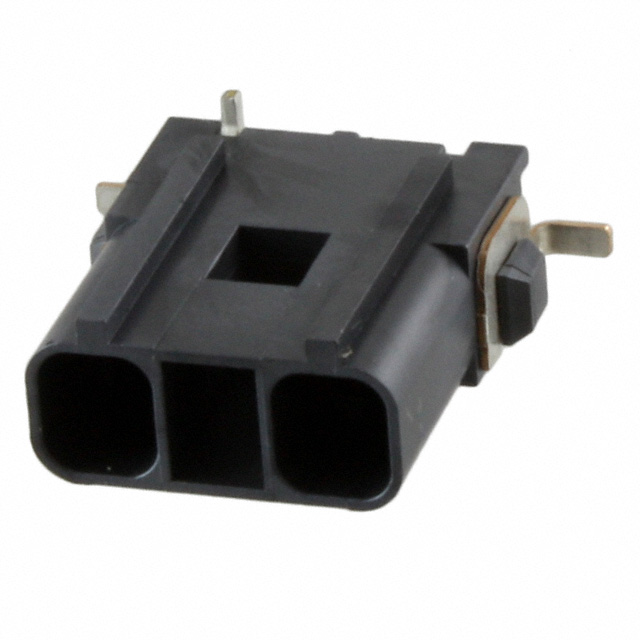

LIGHTING CONNECTOR, SLIMSEAL SERIES, 2 CONTACTS, HEADER, 3.5 MM, SURFACE MOUNT, 1 ROWS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Technical Data Sheet EN +5

2106053-2

Active

TE Connectivity Raychem Cable Protection

LIGHTING CONNECTOR, SLIMSEAL SERIES, 2 CONTACTS, HEADER, 3.5 MM, SURFACE MOUNT, 1 ROWS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Technical Data Sheet EN +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2106053-2

Connector Type	Header, Male Pins
Contact Finish	Tin
Contact Material	Brass
Current Rating (Amps)	5 A, 3.5 A
Fastening Type	Latch Lock
Features	Solder Retention
Housing Color	Black
Housing Material	Liquid Crystal Polymer (LCP)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	30
Mounting Type	Surface Mount
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	400 V

SlimSeal Connectors Headers Series

Part	Fastening Type	Style	Mating Cycles	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Termination	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Mounting Type	Voltage Rating	Housing Material	Housing Color	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Features
TE Connectivity Raychem Cable Protection 2106112-6	Latch Lock	Board to Cable/Wire	30	Brass	4	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Solder	3.5 mm	0.138 in	Tin	Header Male Pins	Through Hole	400 V	Liquid Crystal Polymer (LCP)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106135-2	Latch Lock	Cable/Wire to Cable/Wire or Board	30		2	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Plug Housing for Socket Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106136-3	Latch Lock	Cable/Wire to Cable/Wire	30			-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Receptacle Housing for Tab Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106123-2		Board to Cable/Wire		Copper Alloy	1				Crimp			Tin	Contact Socket	Free Hanging (In-Line)					17.5 AWG	20 AWG
TE Connectivity Raychem Cable Protection 2106123-3		Board to Cable/Wire		Copper Alloy	1				Crimp			Gold	Contact Socket	Free Hanging (In-Line)					17.5 AWG	20 AWG
TE Connectivity Raychem Cable Protection 2106136-4	Latch Lock	Cable/Wire to Cable/Wire	30		4	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Receptacle Housing for Tab Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106135-3	Latch Lock	Cable/Wire to Cable/Wire or Board	30			-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Plug Housing for Socket Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106053-6	Latch Lock	Board to Cable/Wire	30	Brass	4	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Solder	3.5 mm	0.138 in	Tin	Header Male Pins	Surface Mount	400 V	Liquid Crystal Polymer (LCP)	Black	3.5 A 5 A			Solder Retention
TE Connectivity Raychem Cable Protection 2106136-2	Latch Lock	Cable/Wire to Cable/Wire	30		2	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Receptacle Housing for Tab Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106053-2	Latch Lock	Board to Cable/Wire	30	Brass	2	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Solder	3.5 mm	0.138 in	Tin	Header Male Pins	Surface Mount	400 V	Liquid Crystal Polymer (LCP)	Black	3.5 A 5 A			Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.83
		10	$ 3.41
	Digi-Reel®	1	$ 3.83
		10	$ 3.41
	Tape & Reel (TR)	130	$ 2.16
Newark	Each	500	$ 3.17

Description

General part information

SlimSeal Connectors Headers Series

Wire-to-Wire, 2 Position, .14 mm [3.5 in] Centerline, Sealable, Printed Circuit Board, SlimSeal Connectors Headers, Plug & Socket Lighting Connectors
