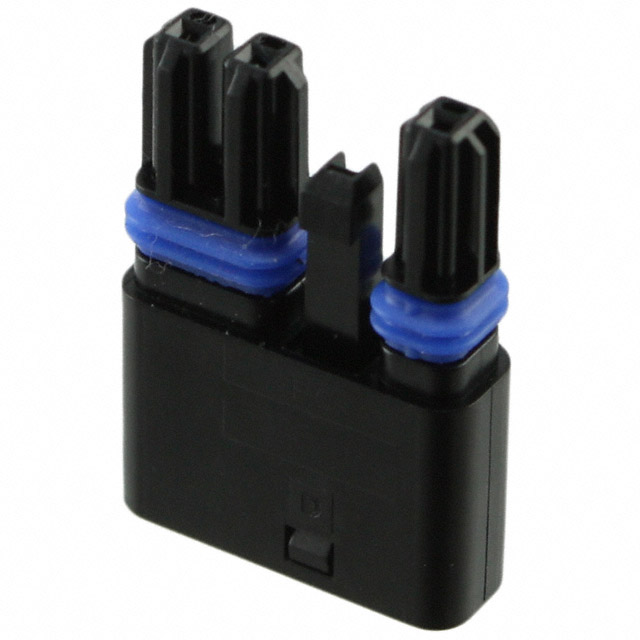

2106135-3
ActiveTE Connectivity Raychem Cable Protection
LIGHTING CONN, PLUG HOUSING, 3POS, CABLE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
2106135-3
ActiveTE Connectivity Raychem Cable Protection
LIGHTING CONN, PLUG HOUSING, 3POS, CABLE ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2106135-3 |
|---|---|
| Connector Type | Plug Housing for Socket Contact |
| Current Rating (Amps) | 5 A, 3.5 A |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Housing Material | Polycarbonate (PC) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mating Cycles | 30 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Style | Cable/Wire to Cable/Wire or Board |
| Termination | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Insulation Displacement Connectors Closed End Series
Lighting Connectors Assembly Plug 3-Pos Sealed Plastic Hsg
