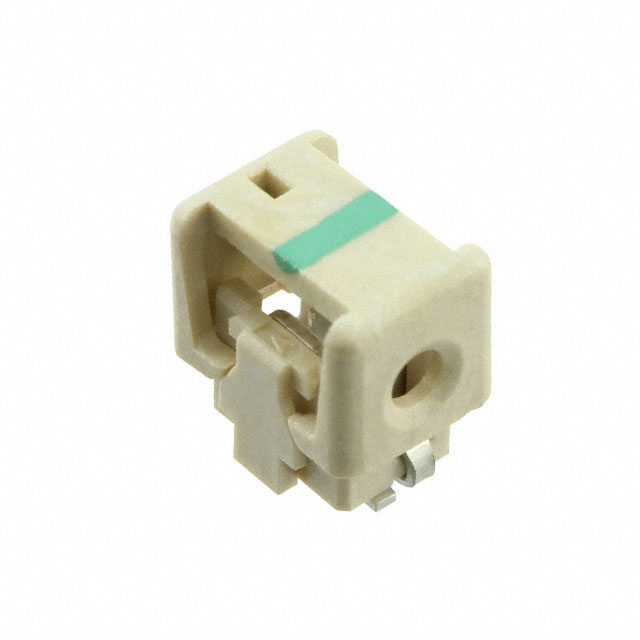

2-2106003-1

Active

TE Connectivity Raychem Cable Protection

CONN WIRE IDC 1POS 22AWG SMD RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDC SSL Connector Appl Spec Datasheet

2-2106003-1

Active

TE Connectivity Raychem Cable Protection

CONN WIRE IDC 1POS 22AWG SMD RA

Deep-Dive with AI

DocumentsIDC SSL Connector Appl Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-2106003-1

Cable Termination	IDC
Color	Natural
Connector Type	Individual Wires
Contact Finish	Tin
Features	Closed End
Mounting Type	Surface Mount, Right Angle
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Wire Gauge	22 AWG

Insulation Displacement Connectors Closed End Series

Lighting Connectors Assembly Plug 3-Pos Sealed Plastic Hsg

Part	Mounting Type	Cable Termination	Color	Features	Wire Gauge	Number of Rows	Board-Side Pitch	Board-Side Pitch	Contact Finish	Number of Positions Loaded	Connector Type	Number of Positions	Cable Pitch	Cable Pitch	Termination	Terminal Type
TE Connectivity Raychem Cable Protection 3-2106431-2	Surface Mount Right Angle	IDC	Natural	Feed Through	24 AWG	1	0.157 in	4 mm	Tin	All	Individual Wires	2	0.157 in	4 mm
TE Connectivity Raychem Cable Protection 2-2106489-4	Through Hole Right Angle	IDC	Natural	Closed End	22 AWG	1	0.157 in	4 mm	Tin	All	Individual Wires	4	0.157 in	4 mm
TE Connectivity Raychem Cable Protection 3-2106489-4	Through Hole Right Angle	IDC	Natural	Closed End	24 AWG	1	0.157 in	4 mm	Tin	All	Individual Wires	4	0.157 in	4 mm
TE Connectivity Raychem Cable Protection 2-2106489-3	Through Hole Right Angle	IDC	Natural	Closed End	22 AWG	1	0.157 in	4 mm	Tin	All	Individual Wires		0.157 in	4 mm
TE Connectivity Raychem Cable Protection 1-2106003-3	Surface Mount Right Angle	IDC	Natural	Closed End	20 AWG	1	0.157 in	4 mm	Tin	All	Individual Wires		0.157 in	4 mm
TE Connectivity Raychem Cable Protection 1-2106489-1	Through Hole Right Angle	IDC	Natural	Closed End	20 AWG	1			Tin	All	Individual Wires	1
TE Connectivity Raychem Cable Protection 2106710-1			Natural		18 AWG										Snap-On	Bus Bar Internal
TE Connectivity Raychem Cable Protection 3-2106003-3	Surface Mount Right Angle	IDC	Natural	Closed End	24 AWG	1	0.157 in	4 mm	Tin	All	Individual Wires		0.157 in	4 mm
TE Connectivity Raychem Cable Protection 2106751-4	Through Hole Right Angle	IDC	Natural	Feed Through	18 AWG	1	0.157 in	4 mm	Tin	All	Individual Wires	4	0.157 in	4 mm
TE Connectivity Raychem Cable Protection 2-2106003-1	Surface Mount Right Angle	IDC	Natural	Closed End	22 AWG	1			Tin	All	Individual Wires	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.77
		10	$ 0.66
		25	$ 0.61
		50	$ 0.58
		100	$ 0.56
	Digi-Reel®	1	$ 0.77
		10	$ 0.66
		25	$ 0.61
		50	$ 0.58
		100	$ 0.56
	Tape & Reel (TR)	450	$ 0.40
		900	$ 0.38
		1350	$ 0.37
		2250	$ 0.36
		3150	$ 0.36

Description

General part information

Insulation Displacement Connectors Closed End Series

Lighting Connectors Assembly Plug 3-Pos Sealed Plastic Hsg

Documents

Technical documentation and resources

IDC SSL Connector Appl Spec

Datasheet
