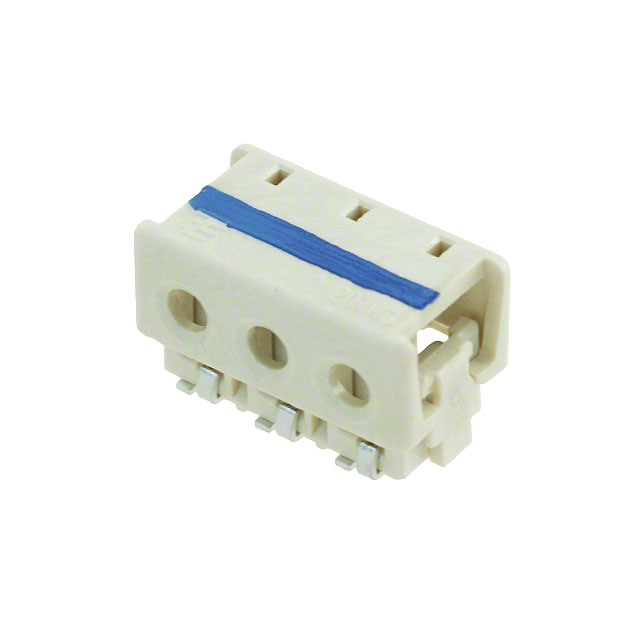

1-2106003-3
ActiveTE Connectivity Raychem Cable Protection
CONN WIRE IDC 3POS 20AWG SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
1-2106003-3
ActiveTE Connectivity Raychem Cable Protection
CONN WIRE IDC 3POS 20AWG SMD RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2106003-3 |
|---|---|
| Board-Side Pitch | 0.157 in |
| Board-Side Pitch | 4 mm |
| Cable Pitch | 0.157 in |
| Cable Pitch | 4 mm |
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Features | Closed End |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| Digi-Reel® | 1 | $ 1.00 | ||
| Tape & Reel (TR) | 24750 | $ 0.59 | ||
Description
General part information
Insulation Displacement Connectors Closed End Series
Lighting Connectors Assembly Plug 3-Pos Sealed Plastic Hsg
