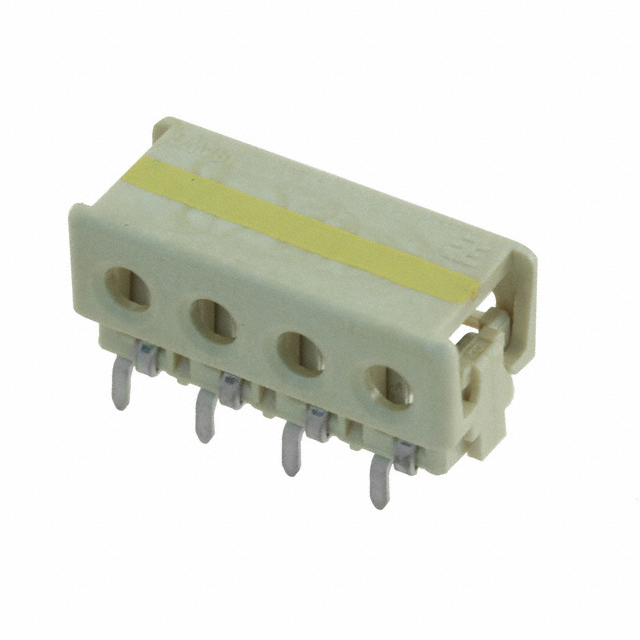

2106751-4
ActiveTE Connectivity Raychem Cable Protection
CONNECTOR, THRU HOLE-IDC, 4 POS, 18AWG
Deep-Dive with AI
Search across all available documentation for this part.
2106751-4
ActiveTE Connectivity Raychem Cable Protection
CONNECTOR, THRU HOLE-IDC, 4 POS, 18AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2106751-4 |
|---|---|
| Board-Side Pitch | 0.157 in |
| Board-Side Pitch | 4 mm |
| Cable Pitch | 0.157 in |
| Cable Pitch | 4 mm |
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Individual Wires |
| Contact Finish | Tin |
| Features | Feed Through |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.69 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.66 | |||
| 50 | $ 0.64 | |||
| 100 | $ 0.54 | |||
| Tape & Reel (TR) | 350 | $ 0.35 | ||
| 700 | $ 0.35 | |||
Description
General part information
Insulation Displacement Connectors Closed End Series
Lighting Connectors Assembly Plug 3-Pos Sealed Plastic Hsg
