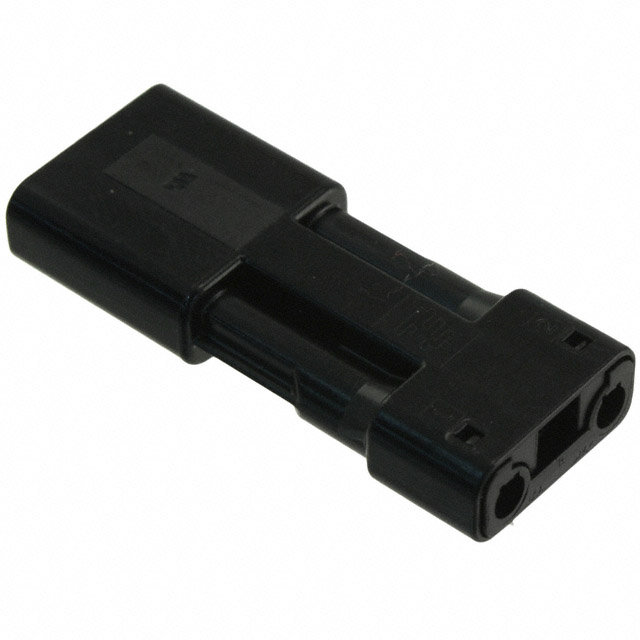

2106136-2

Active

TE Connectivity Raychem Cable Protection

CONN SSL RCPT HSG 2POS 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2106136-2

Active

TE Connectivity Raychem Cable Protection

CONN SSL RCPT HSG 2POS 3.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2106136-2

Connector Type	Receptacle Housing for Tab Contact
Current Rating (Amps)	5 A, 3.5 A
Fastening Type	Latch Lock
Housing Color	Black
Housing Material	Polycarbonate (PC)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	30
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Style	Cable/Wire to Cable/Wire
Termination	Crimp
Voltage Rating	400 V

SlimSeal Connectors Headers Series

Part	Fastening Type	Style	Mating Cycles	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Termination	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Mounting Type	Voltage Rating	Housing Material	Housing Color	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Features
TE Connectivity Raychem Cable Protection 2106112-6	Latch Lock	Board to Cable/Wire	30	Brass	4	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Solder	3.5 mm	0.138 in	Tin	Header Male Pins	Through Hole	400 V	Liquid Crystal Polymer (LCP)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106135-2	Latch Lock	Cable/Wire to Cable/Wire or Board	30		2	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Plug Housing for Socket Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106136-3	Latch Lock	Cable/Wire to Cable/Wire	30			-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Receptacle Housing for Tab Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106123-2		Board to Cable/Wire		Copper Alloy	1				Crimp			Tin	Contact Socket	Free Hanging (In-Line)					17.5 AWG	20 AWG
TE Connectivity Raychem Cable Protection 2106123-3		Board to Cable/Wire		Copper Alloy	1				Crimp			Gold	Contact Socket	Free Hanging (In-Line)					17.5 AWG	20 AWG
TE Connectivity Raychem Cable Protection 2106136-4	Latch Lock	Cable/Wire to Cable/Wire	30		4	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Receptacle Housing for Tab Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106135-3	Latch Lock	Cable/Wire to Cable/Wire or Board	30			-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Plug Housing for Socket Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106053-6	Latch Lock	Board to Cable/Wire	30	Brass	4	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Solder	3.5 mm	0.138 in	Tin	Header Male Pins	Surface Mount	400 V	Liquid Crystal Polymer (LCP)	Black	3.5 A 5 A			Solder Retention
TE Connectivity Raychem Cable Protection 2106136-2	Latch Lock	Cable/Wire to Cable/Wire	30		2	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Crimp	3.5 mm	0.138 in		Receptacle Housing for Tab Contact	Free Hanging (In-Line)	400 V	Polycarbonate (PC)	Black	3.5 A 5 A
TE Connectivity Raychem Cable Protection 2106053-2	Latch Lock	Board to Cable/Wire	30	Brass	2	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Solder	3.5 mm	0.138 in	Tin	Header Male Pins	Surface Mount	400 V	Liquid Crystal Polymer (LCP)	Black	3.5 A 5 A			Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.63
		10	$ 2.34
		25	$ 2.33
		50	$ 2.31
		100	$ 2.11
		250	$ 2.10
		500	$ 1.91
		1000	$ 1.71
		2500	$ 1.58

Description

General part information

SlimSeal Connectors Headers Series

SSL Connector 2 Position Receptacle Housing for Tab Contact Cable/Wire to Cable/Wire 0.138" (3.50mm) Crimp
