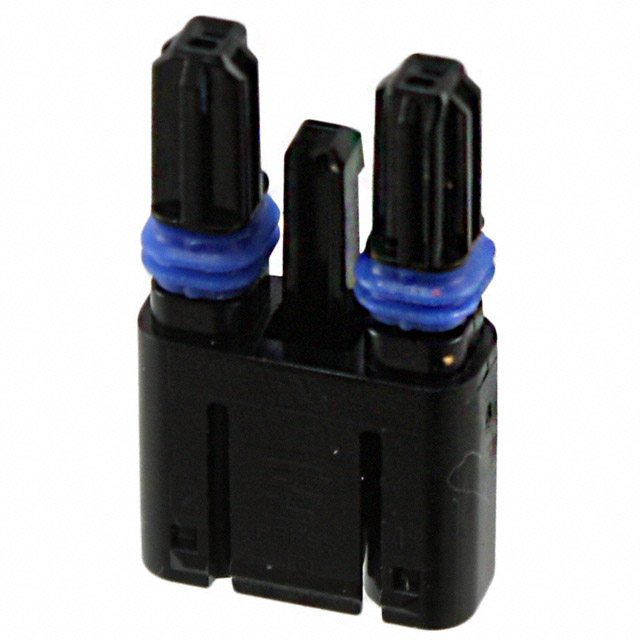

2106135-2
ActiveTE Connectivity Raychem Cable Protection
LIGHTING CONNECTOR, 2 CONTACTS, PLUG, 3.5 MM, 1 ROWS
Deep-Dive with AI
Search across all available documentation for this part.
2106135-2
ActiveTE Connectivity Raychem Cable Protection
LIGHTING CONNECTOR, 2 CONTACTS, PLUG, 3.5 MM, 1 ROWS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2106135-2 |
|---|---|
| Connector Type | Plug Housing for Socket Contact |
| Current Rating (Amps) | 5 A, 3.5 A |
| Fastening Type | Latch Lock |
| Housing Color | Black |
| Housing Material | Polycarbonate (PC) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mating Cycles | 30 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Style | Cable/Wire to Cable/Wire or Board |
| Termination | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SlimSeal Connectors Headers Series
Wire-to-Wire, 2 Position, .14 mm [3.5 in] Centerline, Sealable, Wire & Cable, Plug, SlimSeal Standard Connectors, Plug & Socket Lighting Connectors
