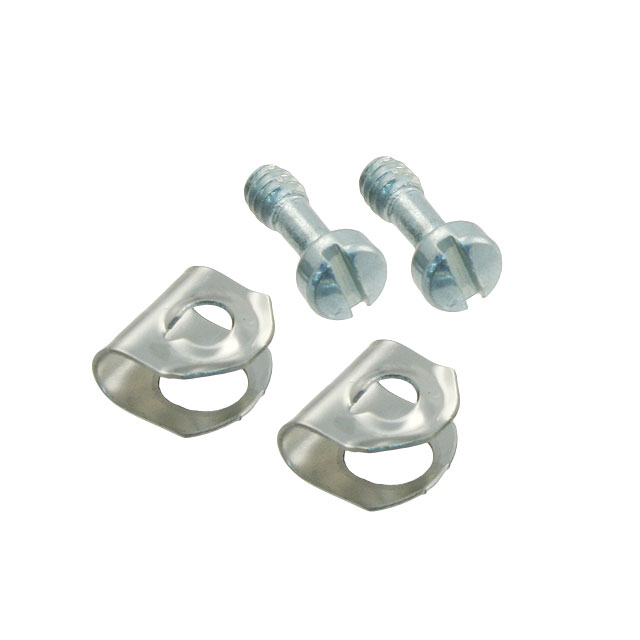

MALE SCREW RETAINER KIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +2

5746881-1

Active

TE Connectivity Raychem Cable Protection

MALE SCREW RETAINER KIT

Deep-Dive with AI

DocumentsDatasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5746881-1

Accessory Type	Jackscrew, Slotted
Features	Clip
For Use With/Related Products	AMPLIMITE Series HDE, HDP
Length - Below Head [x]	0.3 in
Length - Below Head [x]	7.62 mm
Thread Size	4-40

AMPLIMITE HDF Series

Part	Flange Feature	Dielectric Material	Contact Material	Features	Mounting Type	Material Flammability Rating	Number of Positions	Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Color	Current Rating (Amps)	Connector Type	Shell Size, Connector Layout	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Contact Finish	Connector Style	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Accessory Type	For Use With/Related Products	Shell Size, Connector Layout	Length - Below Head [x]	Length - Below Head [x]	Thread Size
TE Connectivity Raychem Cable Protection 1658614-3	Housing/Shell (Unthreaded)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0	15	IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets	2	26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 1658610-2	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0		IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C	B DB	3
TE Connectivity Raychem Cable Protection 746785-1							50																			Strain Relief	AMPLIMITE Series HDF-20 Ribbon Cable Connectors
TE Connectivity Raychem Cable Protection 1658614-2	Housing/Shell (Unthreaded)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0		IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C	B DB	3
TE Connectivity Raychem Cable Protection 1658610-1	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0	37	IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C					4 (DC C)
TE Connectivity Raychem Cable Protection 5746861-2	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0		IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets					Gold	D-Sub	2	105 ░C	-55 °C	B DB	3
TE Connectivity Raychem Cable Protection 1658608-3	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through Grounding Indents	Free Hanging (In-Line)	UL94 V-0	15	IDC Ribbon Cable	Signal			Black	1.25 A	Male Pins Plug	2	26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 1658609-4	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0	9	IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C	DE E	1
TE Connectivity Raychem Cable Protection 1658609-2	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0		IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C	B DB	3
TE Connectivity Raychem Cable Protection 5746881-1				Clip																						Jackscrew Slotted	AMPLIMITE Series HDE HDP		0.3 in	7.62 mm	4-40
