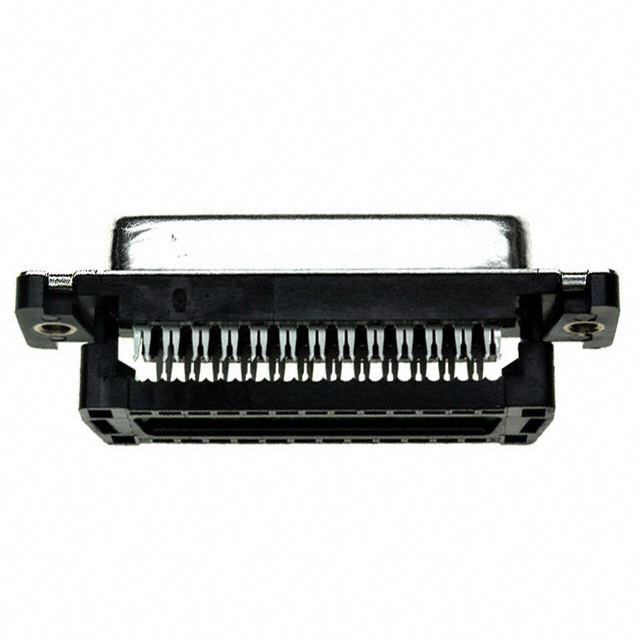

1658610-2
ActiveTE Connectivity Raychem Cable Protection
25 POS HDF RCPT, MS, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
1658610-2
ActiveTE Connectivity Raychem Cable Protection
25 POS HDF RCPT, MS, LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1658610-2 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 1.25 A |
| Dielectric Material | Thermoplastic |
| Features | Feed Through |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | IDC, Ribbon Cable |
| Wire Gauge | Solid, Stranded |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 26 AWG |
AMPLIMITE HDF Series
| Part | Flange Feature | Dielectric Material | Contact Material | Features | Mounting Type | Material Flammability Rating | Number of Positions | Termination | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Color | Current Rating (Amps) | Connector Type | Shell Size, Connector Layout | Wire Gauge [Min] | Wire Gauge [Max] | Wire Gauge | Contact Finish | Connector Style | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Accessory Type | For Use With/Related Products | Shell Size, Connector Layout | Length - Below Head [x] | Length - Below Head [x] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Housing/Shell (Unthreaded) | Thermoplastic | Phosphor Bronze | Feed Through | Free Hanging (In-Line) | UL94 V-0 | 15 | IDC Ribbon Cable | Signal | 0.76 Ám | 30 Áin | Black | 1.25 A | Receptacle Female Sockets | 2 | 26 AWG | 28 AWG | Solid Stranded | Gold | D-Sub | 2 | 105 ░C | -55 °C | ||||||||
TE Connectivity Raychem Cable Protection | Housing/Shell (4-40) | Thermoplastic | Phosphor Bronze | Feed Through | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Signal | 0.76 Ám | 30 Áin | Black | 1.25 A | Receptacle Female Sockets | 26 AWG | 28 AWG | Solid Stranded | Gold | D-Sub | 2 | 105 ░C | -55 °C | B DB | 3 | ||||||||
TE Connectivity Raychem Cable Protection | 50 | Strain Relief | AMPLIMITE Series HDF-20 Ribbon Cable Connectors | ||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Housing/Shell (Unthreaded) | Thermoplastic | Phosphor Bronze | Feed Through | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Signal | 0.76 Ám | 30 Áin | Black | 1.25 A | Receptacle Female Sockets | 26 AWG | 28 AWG | Solid Stranded | Gold | D-Sub | 2 | 105 ░C | -55 °C | B DB | 3 | ||||||||
TE Connectivity Raychem Cable Protection | Housing/Shell (4-40) | Thermoplastic | Phosphor Bronze | Feed Through | Free Hanging (In-Line) | UL94 V-0 | 37 | IDC Ribbon Cable | Signal | 0.76 Ám | 30 Áin | Black | 1.25 A | Receptacle Female Sockets | 26 AWG | 28 AWG | Solid Stranded | Gold | D-Sub | 2 | 105 ░C | -55 °C | 4 (DC C) | ||||||||
TE Connectivity Raychem Cable Protection | Housing/Shell (4-40) | Thermoplastic | Phosphor Bronze | Feed Through | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Signal | 0.76 Ám | 30 Áin | Black | 1.25 A | Receptacle Female Sockets | Gold | D-Sub | 2 | 105 ░C | -55 °C | B DB | 3 | |||||||||||
TE Connectivity Raychem Cable Protection | Housing/Shell (4-40) | Thermoplastic | Phosphor Bronze | Feed Through Grounding Indents | Free Hanging (In-Line) | UL94 V-0 | 15 | IDC Ribbon Cable | Signal | Black | 1.25 A | Male Pins Plug | 2 | 26 AWG | 28 AWG | Solid Stranded | Gold | D-Sub | 2 | 105 ░C | -55 °C | ||||||||||
TE Connectivity Raychem Cable Protection | Housing/Shell (4-40) | Thermoplastic | Phosphor Bronze | Feed Through | Free Hanging (In-Line) | UL94 V-0 | 9 | IDC Ribbon Cable | Signal | 0.76 Ám | 30 Áin | Black | 1.25 A | Receptacle Female Sockets | 26 AWG | 28 AWG | Solid Stranded | Gold | D-Sub | 2 | 105 ░C | -55 °C | DE E | 1 | |||||||
TE Connectivity Raychem Cable Protection | Housing/Shell (4-40) | Thermoplastic | Phosphor Bronze | Feed Through | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Signal | 0.76 Ám | 30 Áin | Black | 1.25 A | Receptacle Female Sockets | 26 AWG | 28 AWG | Solid Stranded | Gold | D-Sub | 2 | 105 ░C | -55 °C | B DB | 3 | ||||||||
TE Connectivity Raychem Cable Protection | Clip | Jackscrew Slotted | AMPLIMITE Series HDE HDP | 0.3 in | 7.62 mm | 4-40 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.67 | |
| 10 | $ 9.91 | |||
| 40 | $ 8.99 | |||
| 80 | $ 8.56 | |||
| 120 | $ 8.32 | |||
| 280 | $ 7.84 | |||
| 520 | $ 7.50 | |||
| 1000 | $ 7.16 | |||
Description
General part information
AMPLIMITE HDF Series
25 Position D-Shaped Connector, Receptacle, Cable-to-Cable, Cable Mount (Free-Hanging), 3 Shell Size, 2.77 mm [.055 in] Centerline, AMPLIMITE HDF
