1658614-2

Active

TE Connectivity Raychem Cable Protection

25 POS HDF RCPT, AP, LEAD FREE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIMPACT 100 Ohm Interconnect Systems ENG_CD_1658614_P.pdf +6

1658614-2

Active

TE Connectivity Raychem Cable Protection

25 POS HDF RCPT, AP, LEAD FREE

Deep-Dive with AI

DocumentsIMPACT 100 Ohm Interconnect Systems ENG_CD_1658614_P.pdf +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1658614-2

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	1.25 A
Dielectric Material	Thermoplastic
Features	Feed Through
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	IDC, Ribbon Cable
Wire Gauge	Solid, Stranded
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	26 AWG

AMPLIMITE HDF Series

Part	Flange Feature	Dielectric Material	Contact Material	Features	Mounting Type	Material Flammability Rating	Number of Positions	Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Color	Current Rating (Amps)	Connector Type	Shell Size, Connector Layout	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge	Contact Finish	Connector Style	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Accessory Type	For Use With/Related Products	Shell Size, Connector Layout	Length - Below Head [x]	Length - Below Head [x]	Thread Size
TE Connectivity Raychem Cable Protection 1658614-3	Housing/Shell (Unthreaded)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0	15	IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets	2	26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 1658610-2	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0		IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C	B DB	3
TE Connectivity Raychem Cable Protection 746785-1							50																			Strain Relief	AMPLIMITE Series HDF-20 Ribbon Cable Connectors
TE Connectivity Raychem Cable Protection 1658614-2	Housing/Shell (Unthreaded)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0		IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C	B DB	3
TE Connectivity Raychem Cable Protection 1658610-1	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0	37	IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C					4 (DC C)
TE Connectivity Raychem Cable Protection 5746861-2	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0		IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets					Gold	D-Sub	2	105 ░C	-55 °C	B DB	3
TE Connectivity Raychem Cable Protection 1658608-3	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through Grounding Indents	Free Hanging (In-Line)	UL94 V-0	15	IDC Ribbon Cable	Signal			Black	1.25 A	Male Pins Plug	2	26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 1658609-4	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0	9	IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C	DE E	1
TE Connectivity Raychem Cable Protection 1658609-2	Housing/Shell (4-40)	Thermoplastic	Phosphor Bronze	Feed Through	Free Hanging (In-Line)	UL94 V-0		IDC Ribbon Cable	Signal	0.76 Ám	30 Áin	Black	1.25 A	Receptacle Female Sockets		26 AWG	28 AWG	Solid Stranded	Gold	D-Sub	2	105 ░C	-55 °C	B DB	3
TE Connectivity Raychem Cable Protection 5746881-1				Clip																						Jackscrew Slotted	AMPLIMITE Series HDE HDP		0.3 in	7.62 mm	4-40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.25
		10	$ 6.56
		40	$ 6.39
		80	$ 6.14
		120	$ 6.11

Description

General part information

AMPLIMITE HDF Series

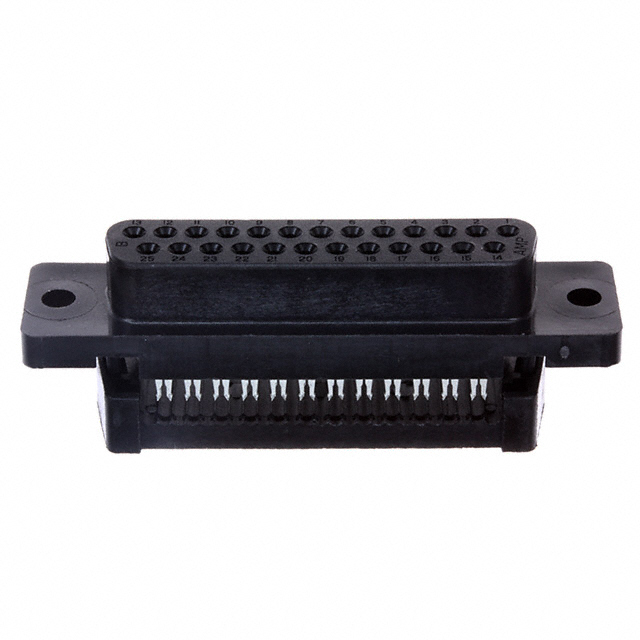

25 Position D-Shaped Connector, Receptacle, Cable-to-Cable, Cable Mount (Free-Hanging), 3 Shell Size, 2.77 mm [.055 in] Centerline, AMPLIMITE HDF

Documents

Technical documentation and resources

1658614-2

Deep-Dive with AI

1658614-2

Deep-Dive with AI

Technical Specifications

AMPLIMITE HDF Series

Pricing

Description

AMPLIMITE HDF Series

Documents

IMPACT 100 Ohm Interconnect Systems

ENG_CD_1658614_P.pdf

AMPLIMITE Cable Connectors and Shielding Hardware Kits QRG

AMPLIMITE & AMPLIMITE .050

AMPLIMITE Subminiature D Connectors - Cable Connectors

AMPLIMITE MDF-20 Low Profile Connector

AMPLIMITE HDF-20 Low Profile Connector

Datasheet

AMPLIMITE HDF Series
