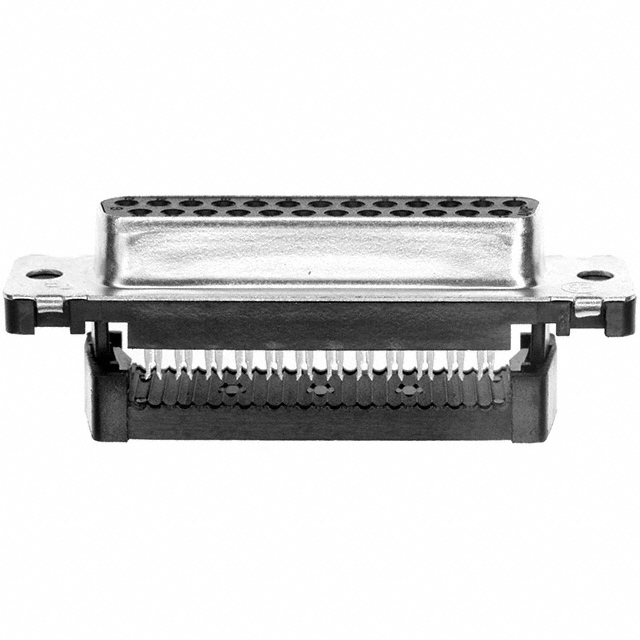

5746861-2
ActiveTE Connectivity Raychem Cable Protection
25 POS HDF RCPT, MS
Deep-Dive with AI
Search across all available documentation for this part.
5746861-2
ActiveTE Connectivity Raychem Cable Protection
25 POS HDF RCPT, MS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5746861-2 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 1.25 A |
| Dielectric Material | Thermoplastic |
| Features | Feed Through |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | IDC, Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 22.75 | |
| 10 | $ 18.78 | |||
| 40 | $ 17.45 | |||
| 80 | $ 16.49 | |||
| 120 | $ 16.13 | |||
| 280 | $ 16.01 | |||
| 520 | $ 15.41 | |||
Description
General part information
AMPLIMITE HDF Series
25 Position D-Shaped Connector, Receptacle, Cable-to-Cable, Cable Mount (Free-Hanging), 3 Shell Size, 2.77 mm [.055 in] Centerline, AMPLIMITE HDF
