JWMW21RA2A

Active

NKK Switches

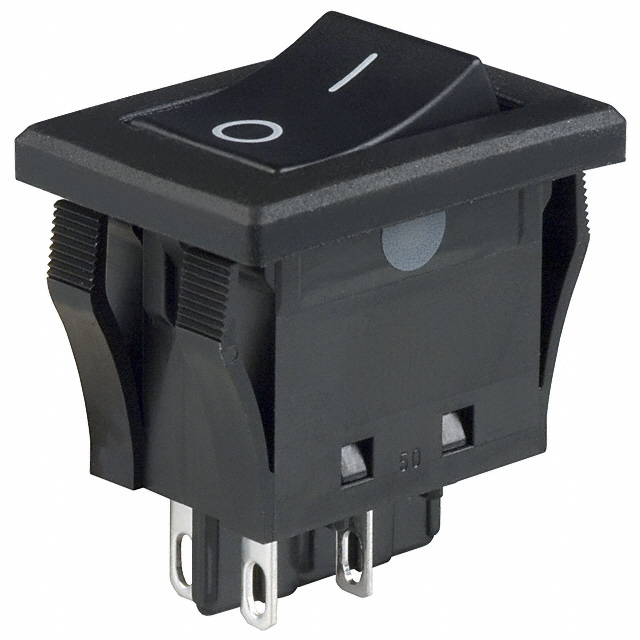

ROCKER SWITCH, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL MOUNT, BLACK, JW SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

JWMW21RA2A

Active

NKK Switches

ROCKER SWITCH, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL MOUNT, BLACK, JW SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWMW21RA2A

Actuator Marking	O -
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	25 mm
Panel Cutout Dimensions [y]	15.4 mm
Switch Function	On-Off
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

JWMW21 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - DC	Current Rating (Amps)	Electrical Life	Color - Actuator/Cap	Ingress Protection	Switch Function	Mechanical Life	Actuator Marking	Circuit	Approval Agency	Actuator Type	Termination Style	Voltage Rating - AC	Features	Termination Style	Termination Style
NKK Switches JWMW21RA2A/CUL-WL	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	Dust Proof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Wire Leads	125 V
NKK Switches JWMW21RA1A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA2A-184A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA2A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA1A-156F	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA2A/CUL	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V		0.11 in	2.8 mm
NKK Switches JWMW21RA1A/CUL	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RC1A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Red	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.41
		10	$ 10.28
		25	$ 9.85
		50	$ 9.37
		100	$ 8.99
		250	$ 8.45
		500	$ 7.81
		1000	$ 7.54
Newark	Each	1	$ 13.47
		10	$ 11.68

Description

General part information

JWMW21 Series

The JWMW21RA2A is a SPST non-illuminated Panel-mount Rocker Switch with ON-None-OFF operation and vertical inscription orientation. It has panel seal, polyphenylene ether rocker and black polyamide housing. It is designed to handle large inrush current, with high electrical capacity of 10A. It is constructed for dust resistance with interior cover between actuator and contact area.
