JWMW21RA1A
ActiveNKK Switches

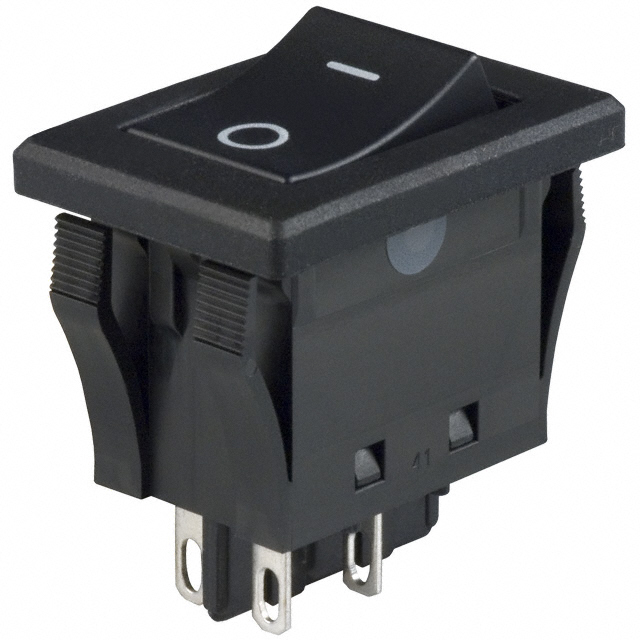

ROCKER SWITCH, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL MOUNT, BLACK, JW SERIES
Deep-Dive with AI
Search across all available documentation for this part.
JWMW21RA1A
ActiveNKK Switches
ROCKER SWITCH, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL MOUNT, BLACK, JW SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JWMW21RA1A |
|---|---|
| Actuator Marking | O I |
| Actuator Type | Concave (Curved) |
| Approval Agency | UL, VDE, CSA |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 25000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 25 mm |
| Panel Cutout Dimensions [y] | 15.4 mm |
| Switch Function | On-Off |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
JWMW21 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - DC | Current Rating (Amps) | Electrical Life | Color - Actuator/Cap | Ingress Protection | Switch Function | Mechanical Life | Actuator Marking | Circuit | Approval Agency | Actuator Type | Termination Style | Voltage Rating - AC | Features | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | -25 °C | 85 °C | Panel Mount Snap-In | 25 mm | 15.4 mm | 30 V | 10 A | 25000 Steps | Black | Dust Proof | On-Off | 25000 Steps | O - | DPST | CSA UL VDE | Concave (Curved) | Wire Leads | 125 V | |||
NKK Switches | -25 °C | 85 °C | Panel Mount Snap-In | 25 mm | 15.4 mm | 30 V | 10 A | 25000 Steps | Black | IP67 - Dust Tight Waterproof | On-Off | 25000 Steps | O I | DPST | CSA UL VDE | Concave (Curved) | Quick Connect Solder | 125 V | Epoxy Sealed Terminals | 0.11 in | 2.8 mm |
NKK Switches | -25 °C | 85 °C | Panel Mount Snap-In | 25 mm | 15.4 mm | 30 V | 10 A | 25000 Steps | Black | IP67 - Dust Tight Waterproof | On-Off | 25000 Steps | O - | DPST | CSA UL VDE | Concave (Curved) | Quick Connect Solder | 125 V | Epoxy Sealed Terminals | 0.11 in | 2.8 mm |
NKK Switches | -25 °C | 85 °C | Panel Mount Snap-In | 25 mm | 15.4 mm | 30 V | 10 A | 25000 Steps | Black | IP67 - Dust Tight Waterproof | On-Off | 25000 Steps | O - | DPST | CSA UL VDE | Concave (Curved) | Quick Connect Solder | 125 V | Epoxy Sealed Terminals | 0.11 in | 2.8 mm |
NKK Switches | -25 °C | 85 °C | Panel Mount Snap-In | 25 mm | 15.4 mm | 30 V | 10 A | 25000 Steps | Black | IP67 - Dust Tight Waterproof | On-Off | 25000 Steps | O I | DPST | CSA UL VDE | Concave (Curved) | Quick Connect Solder | 125 V | Epoxy Sealed Terminals | 0.11 in | 2.8 mm |
NKK Switches | -25 °C | 85 °C | Panel Mount Snap-In | 25 mm | 15.4 mm | 30 V | 10 A | 25000 Steps | Black | IP67 - Dust Tight Waterproof | On-Off | 25000 Steps | O - | DPST | CSA UL VDE | Concave (Curved) | Quick Connect Solder | 125 V | 0.11 in | 2.8 mm | |
NKK Switches | -25 °C | 85 °C | Panel Mount Snap-In | 25 mm | 15.4 mm | 30 V | 10 A | 25000 Steps | Black | IP67 - Dust Tight Waterproof | On-Off | 25000 Steps | O I | DPST | CSA UL VDE | Concave (Curved) | Quick Connect Solder | 125 V | Epoxy Sealed Terminals | 0.11 in | 2.8 mm |
NKK Switches | -25 °C | 85 °C | Panel Mount Snap-In | 25 mm | 15.4 mm | 30 V | 10 A | 25000 Steps | Red | IP67 - Dust Tight Waterproof | On-Off | 25000 Steps | O I | DPST | CSA UL VDE | Concave (Curved) | Quick Connect Solder | 125 V | Epoxy Sealed Terminals | 0.11 in | 2.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
JWMW21 Series
Rocker Switch DPST 10A (AC/DC) 125 V Panel Mount, Snap-In
