JWMW21RC1A

Active

NKK Switches

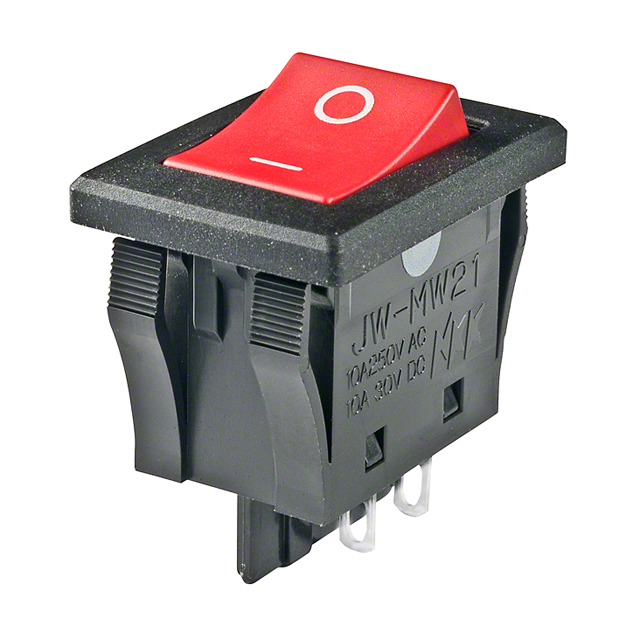

ROCKER SWITCH, HIGH INRUSH, IP67, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL MOUNT, RED, JW SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

JWMW21RC1A

Active

NKK Switches

ROCKER SWITCH, HIGH INRUSH, IP67, ON-NONE-OFF, DPST, NON ILLUMINATED, PANEL MOUNT, RED, JW SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWMW21RC1A

Actuator Marking	O I
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	25 mm
Panel Cutout Dimensions [y]	15.4 mm
Switch Function	On-Off
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

JWMW21 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - DC	Current Rating (Amps)	Electrical Life	Color - Actuator/Cap	Ingress Protection	Switch Function	Mechanical Life	Actuator Marking	Circuit	Approval Agency	Actuator Type	Termination Style	Voltage Rating - AC	Features	Termination Style	Termination Style
NKK Switches JWMW21RA2A/CUL-WL	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	Dust Proof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Wire Leads	125 V
NKK Switches JWMW21RA1A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA2A-184A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA2A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA1A-156F	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA2A/CUL	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V		0.11 in	2.8 mm
NKK Switches JWMW21RA1A/CUL	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RC1A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Red	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.41
		10	$ 10.28
		25	$ 9.85
		50	$ 9.37
		100	$ 8.99
		250	$ 8.45
		500	$ 7.81
		1000	$ 7.54
LCSC	Piece	1	$ 11.94
		200	$ 4.77
		500	$ 4.61
Newark	Each	1	$ 20.75
		5	$ 19.71
		10	$ 18.27
		25	$ 16.66
		50	$ 14.42
		100	$ 13.46
		250	$ 12.26

Description

General part information

JWMW21 Series

Rocker Switch DPST 10A (AC/DC) 125 V Panel Mount, Snap-In
