NKK Switches

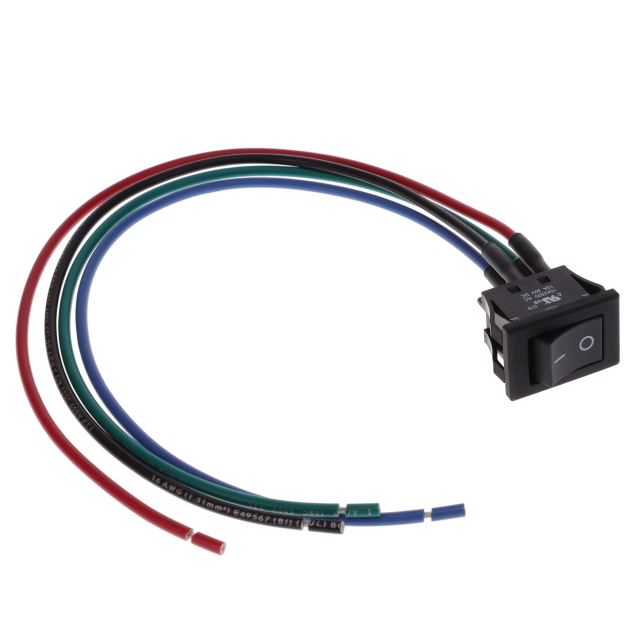

SWITCH ROCKER DPST 10A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JWMW21RA2A/CUL-WL

Active

NKK Switches

SWITCH ROCKER DPST 10A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JWMW21RA2A/CUL-WL

Actuator Marking	O -
Actuator Type	Concave (Curved)
Approval Agency	UL, VDE, CSA
Circuit	DPST
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Electrical Life	25000 Steps
Ingress Protection	Dust Proof
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	25 mm
Panel Cutout Dimensions [y]	15.4 mm
Switch Function	On-Off
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

JWMW21 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - DC	Current Rating (Amps)	Electrical Life	Color - Actuator/Cap	Ingress Protection	Switch Function	Mechanical Life	Actuator Marking	Circuit	Approval Agency	Actuator Type	Termination Style	Voltage Rating - AC	Features	Termination Style	Termination Style
NKK Switches JWMW21RA2A/CUL-WL	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	Dust Proof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Wire Leads	125 V
NKK Switches JWMW21RA1A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA2A-184A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA2A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA1A-156F	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RA2A/CUL	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O -	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V		0.11 in	2.8 mm
NKK Switches JWMW21RA1A/CUL	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Black	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
NKK Switches JWMW21RC1A	-25 °C	85 °C	Panel Mount Snap-In	25 mm	15.4 mm	30 V	10 A	25000 Steps	Red	IP67 - Dust Tight Waterproof	On-Off	25000 Steps	O I	DPST	CSA UL VDE	Concave (Curved)	Quick Connect Solder	125 V	Epoxy Sealed Terminals	0.11 in	2.8 mm
