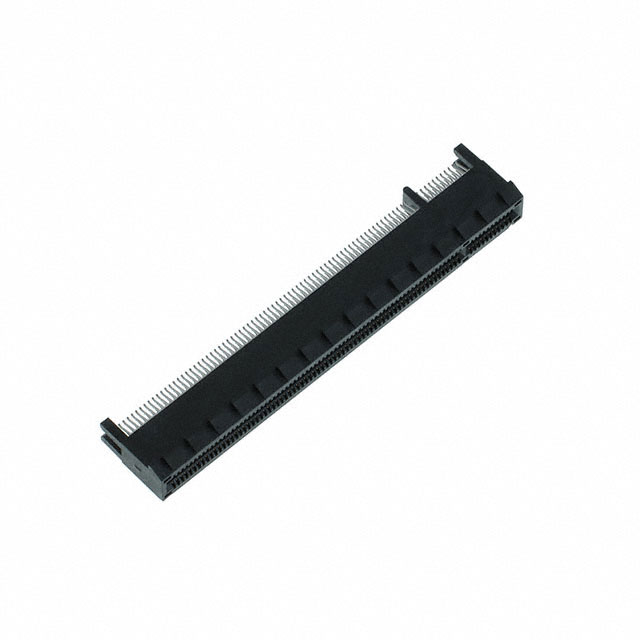

PCIE-164-02-S-D-EMS3-BG

Active

Samtec Inc.

CONN PCI EXP FMALE 164POS 0.039

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 1.00 mm PCI Express® Gen 3 Edge Card Connector +1

PCIE-164-02-S-D-EMS3-BG

Active

Samtec Inc.

CONN PCI EXP FMALE 164POS 0.039

Deep-Dive with AI

DocumentsDatasheet 1.00 mm PCI Express® Gen 3 Edge Card Connector +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCIE-164-02-S-D-EMS3-BG

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	164
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

PCIE-164 Series

Part	Material - Insulation	Read Out	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Gender	Termination	Card Type	Features	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch [x]	Pitch [x]	Number of Rows
Samtec Inc. PCIE-164-02-S-D-EMS2-BG	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.76 Ám	30 Áin	164	Gold	Female	Solder	PCI Express™	Board Guide	Black	Board Edge Straddle Mount	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-F-D-TH	Polyamide (PA66) Nylon 6/6	Dual	0.062 in	1.57 mm	0.076 Ám	3 Áin	164	Gold	Female	Solder Staggered	PCI Express™	Board Guide	Black	Through Hole	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-F-D-EMS2	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.076 Ám	3 Áin	164	Gold	Female	Solder	PCI Express™	Locking Ramp	Black	Board Edge Straddle Mount	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-S-D-EMS3-BG	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.76 Ám	30 Áin	164	Gold	Female	Solder	PCI Express™	Board Guide	Black	Board Edge Straddle Mount	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-F-D-RA	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.076 Ám	3 Áin	164	Gold	Female	Solder Staggered	PCI Express™	Board Guide	Black	Through Hole Right Angle	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-S-D-EMS3	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.76 Ám	30 Áin	164	Gold	Female	Solder	PCI Express™	Locking Ramp	Black	Board Edge Straddle Mount	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.83
		10	$ 15.58
		25	$ 14.33
		50	$ 12.46
		100	$ 11.64
Newark	Each	1	$ 16.33
		10	$ 15.72
		25	$ 15.11
		50	$ 13.90
		100	$ 12.09
