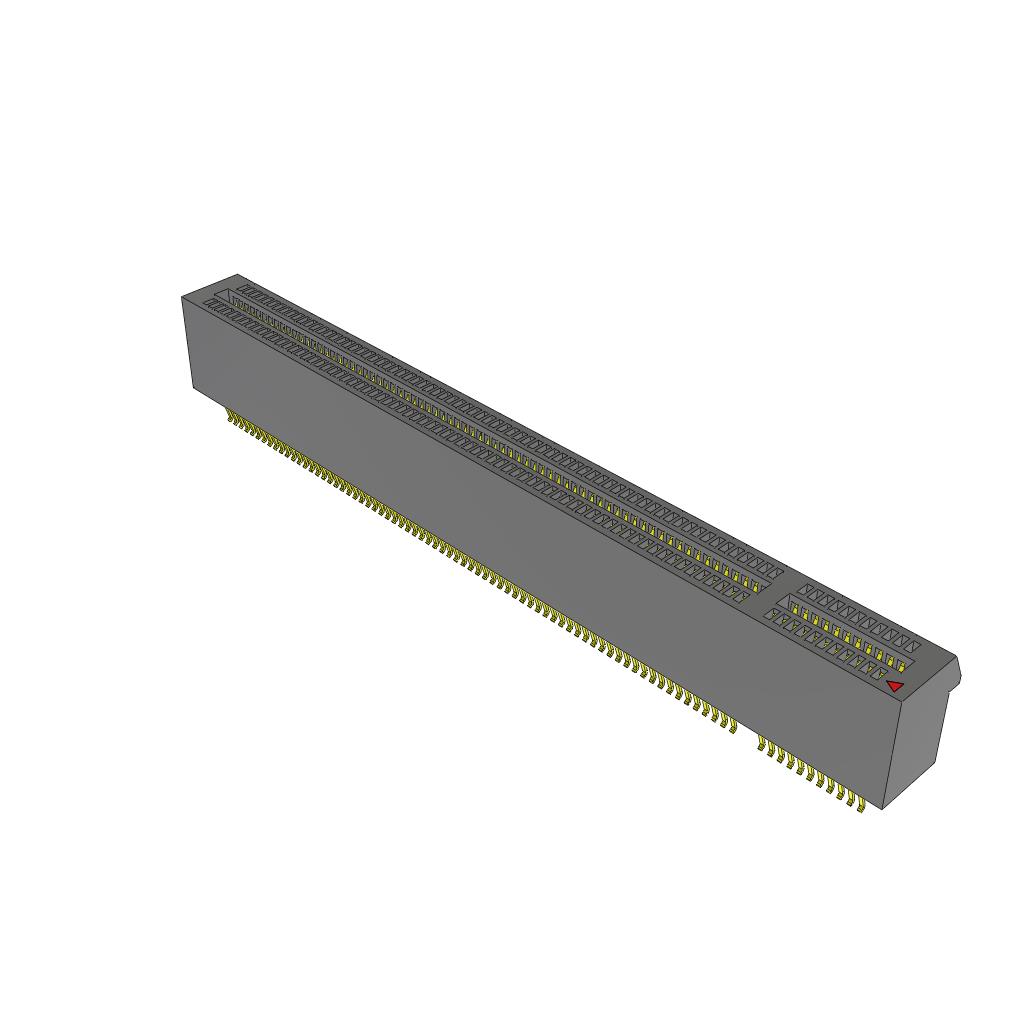

PCIE-164-02-S-D-EMS3
ActiveSamtec Inc.
CONN PCI EXP FMALE 164POS 0.039
Deep-Dive with AI
Search across all available documentation for this part.
PCIE-164-02-S-D-EMS3
ActiveSamtec Inc.
CONN PCI EXP FMALE 164POS 0.039
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PCIE-164-02-S-D-EMS3 |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Features | Locking Ramp |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 164 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 16.83 | |
Description
General part information
PCIE-164 Series
164 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
