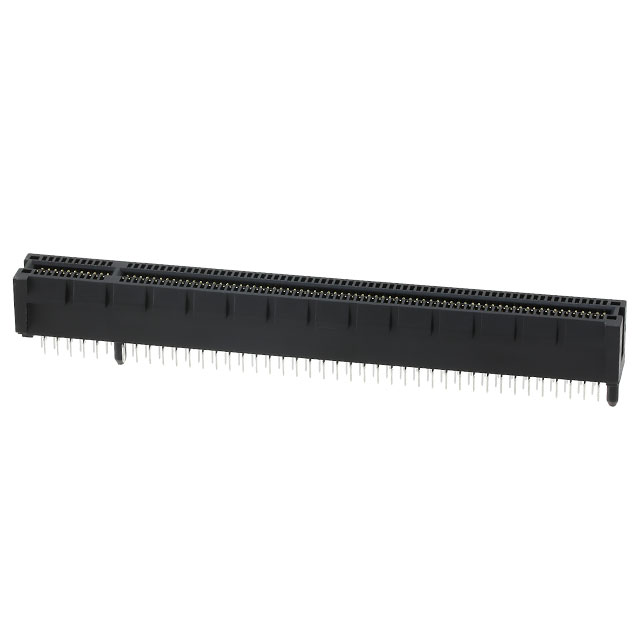

PCIE-164-02-F-D-TH

Active

Samtec Inc.

CONN PCI EXPRESS CARD EDGE SKT 164 POS 1MM SOLDER ST THRU-HOLE PCI EXPRESS® TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPCIE Series Other Related Documents 01 PCIE Datasheet +1

PCIE-164-02-F-D-TH

Active

Samtec Inc.

CONN PCI EXPRESS CARD EDGE SKT 164 POS 1MM SOLDER ST THRU-HOLE PCI EXPRESS® TUBE

Deep-Dive with AI

DocumentsPCIE Series Other Related Documents 01 PCIE Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PCIE-164-02-F-D-TH

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Contact Material	Phosphor Bronze
Features	Board Guide
Gender	Female
Material - Insulation	Polyamide (PA66), Nylon 6/6
Mounting Type	Through Hole
Number of Positions	164
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder, Staggered

PCIE-164 Series

Part	Material - Insulation	Read Out	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Gender	Termination	Card Type	Features	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch [x]	Pitch [x]	Number of Rows
Samtec Inc. PCIE-164-02-S-D-EMS2-BG	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.76 Ám	30 Áin	164	Gold	Female	Solder	PCI Express™	Board Guide	Black	Board Edge Straddle Mount	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-F-D-TH	Polyamide (PA66) Nylon 6/6	Dual	0.062 in	1.57 mm	0.076 Ám	3 Áin	164	Gold	Female	Solder Staggered	PCI Express™	Board Guide	Black	Through Hole	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-F-D-EMS2	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.076 Ám	3 Áin	164	Gold	Female	Solder	PCI Express™	Locking Ramp	Black	Board Edge Straddle Mount	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-S-D-EMS3-BG	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.76 Ám	30 Áin	164	Gold	Female	Solder	PCI Express™	Board Guide	Black	Board Edge Straddle Mount	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-F-D-RA	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.076 Ám	3 Áin	164	Gold	Female	Solder Staggered	PCI Express™	Board Guide	Black	Through Hole Right Angle	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2
Samtec Inc. PCIE-164-02-S-D-EMS3	Liquid Crystal Polymer (LCP)	Dual	0.062 in	1.57 mm	0.76 Ám	30 Áin	164	Gold	Female	Solder	PCI Express™	Locking Ramp	Black	Board Edge Straddle Mount	-55 °C	125 °C	Phosphor Bronze	0.039 in	1 mm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.45
		10	$ 3.02
		50	$ 2.82
Digikey	Tube	1	$ 3.76
		50	$ 3.07
		100	$ 2.60
		500	$ 2.31
		1000	$ 1.96
		2000	$ 1.85
		5000	$ 1.84

Description

General part information

PCIE-164 Series

164 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black

Documents

Technical documentation and resources

PCIE Series Other Related Documents 01

PCIE Datasheet

Datasheet
