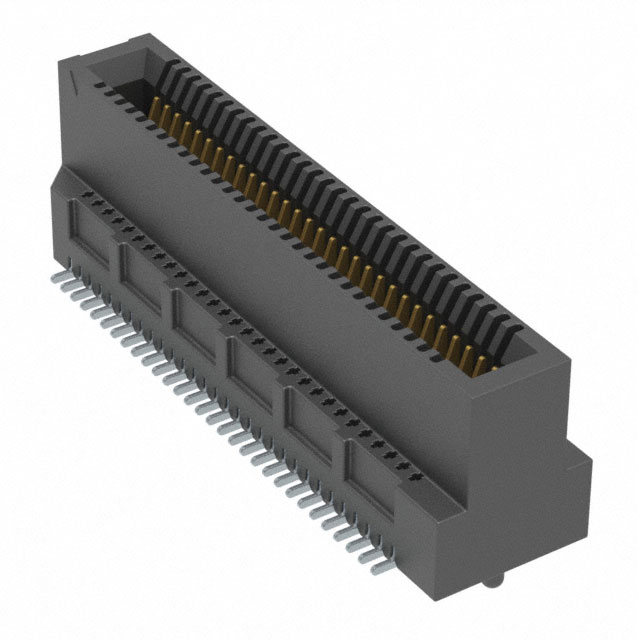

MEC8-130-01-L-DV-A-K-TR

Active

Samtec Inc.

STANDARD CARD EDGE CONNECTORS 0.80 MM MINI EDGE CARD CONNECTOR, VERTICAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MEC8-130-01-L-DV-A-K-TR

Active

Samtec Inc.

STANDARD CARD EDGE CONNECTORS 0.80 MM MINI EDGE CARD CONNECTOR, VERTICAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC8-130-01-L-DV-A-K-TR

Card Thickness	0.039 in
Card Thickness	1 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder

MEC8-140 Series

Standard Card Edge Connectors 0.80 mm Mini Edge Card Connector, Vertical

Part	Number of Positions/Bay/Row [custom]	Contact Material	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination	Pitch [x]	Pitch [x]	Features	Contact Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Mounting Type	Card Thickness	Card Thickness	Read Out	Material - Insulation	Color	Number of Rows
Samtec Inc. MEC8-140-02-L-DV-A-K-TR	40	Phosphor Bronze	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in	Board Guide	Gold	80	-55 °C	125 °C	Hairpin Bellows	Surface Mount	0.062 in	1.57 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. MEC8-140-02-LM-DV-A-K		Phosphor Bronze	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in	Board Guide	Gold	80	-55 °C	125 °C	Hairpin Bellows	Surface Mount	0.062 in	1.57 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. MEC8-140-02-L-DV-A	40	Phosphor Bronze	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in	Board Guide	Gold	80	-55 °C	125 °C	Hairpin Bellows	Surface Mount	0.062 in	1.57 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. MEC8-130-01-L-DV-A-K-TR		Phosphor Bronze	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in	Board Guide	Gold	60	-55 °C	125 °C	Hairpin Bellows	Surface Mount	0.039 in	1 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. MEC8-140-02-S-D-RA1		Phosphor Bronze	Female	30 Áin	0.76 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in	Board Guide	Gold	80	-55 °C	125 °C	Hairpin Bellows	Surface Mount	0.062 in	1.57 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. MEC8-140-02-LM-DV-A		Phosphor Bronze	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in	Board Guide	Gold	80	-55 °C	125 °C	Hairpin Bellows	Surface Mount	0.062 in	1.57 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. MEC8-145-02-L-DV-A-K		Phosphor Bronze	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in	Board Guide	Gold	90	-55 °C	125 °C	Hairpin Bellows	Surface Mount	0.062 in	1.57 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. MEC8-140-02-L-DV-A-K		Phosphor Bronze	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in	Board Guide	Gold	80	-55 °C	125 °C	Hairpin Bellows	Surface Mount	0.062 in	1.57 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. MEC8-140-02-L-D-RA1		Phosphor Bronze	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in	Board Guide	Gold	80	-55 °C	125 °C		Surface Mount Right Angle	0.062 in	1.57 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2
Samtec Inc. MEC8-140-02-L-D-EM2		Phosphor Bronze	Female	10 Áin	0.25 Ám	Non Specified - Dual Edge	Solder	0.8 mm	0.031 in		Gold	80	-55 °C	125 °C	Hairpin Bellows	Board Edge Straddle Mount	0.062 in	1.57 mm	Dual	Liquid Crystal Polymer (LCP)	Black	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	175	$ 5.61
Sager	N/A	1	$ 5.82
		25	$ 5.33
		50	$ 4.83
		100	$ 4.49
		500	$ 4.21
		1000	$ 3.91
		2500	$ 3.26
		4200	$ 2.77

Description

General part information

MEC8-140 Series

Standard Card Edge Connectors 0.80 mm Mini Edge Card Connector, Vertical
