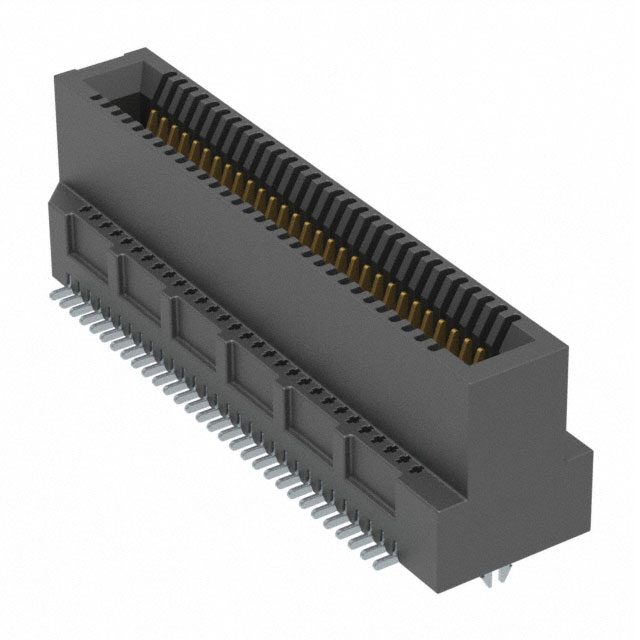

MEC8-130-01-L-DV-LC

Active

Samtec Inc.

CONN EDGE DUAL FMALE 60POS 0.031

Deep-Dive with AI

Search across all available documentation for this part.

MEC8-130-01-L-DV-LC

Active

Samtec Inc.

CONN EDGE DUAL FMALE 60POS 0.031

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC8-130-01-L-DV-LC

Card Thickness	0.039 in
Card Thickness	1 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder

MEC8-130 Series

Standard Card Edge Connectors 0.80 mm Mini Edge Card Connector, Vertical

Part	Mounting Type	Material - Insulation	Card Thickness	Card Thickness	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish	Number of Positions	Features	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Read Out	Number of Rows	Card Type	Pitch [x]	Pitch [x]
Samtec Inc. MEC8-130-01-L-D-RA1-TR	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Black	-55 °C	125 °C	Hairpin Bellows	Gold	60	Board Guide	Female	10 Áin	0.25 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in
Samtec Inc. MEC8-130-02-LM-DV-A-K	Surface Mount	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Black	-55 °C	125 °C	Hairpin Bellows	Gold	60	Board Guide	Female	10 Áin	0.25 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in
Samtec Inc. MEC8-130-02-L-D-RA1	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Black	-55 °C	125 °C		Gold	60	Board Guide	Female	10 Áin	0.25 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in

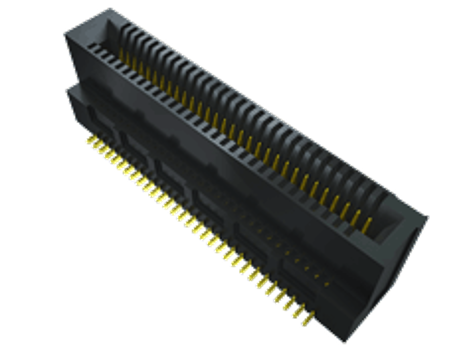

Samtec Inc. MEC8-130-01-L-DV-A-K-TR	Surface Mount	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Black	-55 °C	125 °C	Hairpin Bellows	Gold	60	Board Guide	Female	10 Áin	0.25 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in
Samtec Inc. MEC8-130-02-L-DV-K-TR	Surface Mount	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Black	-55 °C	125 °C	Hairpin Bellows	Gold	60	Board Guide	Female	10 Áin	0.25 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in
Samtec Inc. MEC8-130-01-L-DV-LC	Surface Mount	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Black	-55 °C	125 °C	Hairpin Bellows	Gold	60	Board Guide	Female	10 Áin	0.25 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in
Samtec Inc. MEC8-130-01-L-D-EM2	Board Edge Straddle Mount	Liquid Crystal Polymer (LCP)	0.039 in	1 mm	Black	-55 °C	125 °C	Hairpin Bellows	Gold	60		Female	10 Áin	0.25 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in
Samtec Inc. MEC8-130-02-SM-D-RA1	Surface Mount	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Black	-55 °C	125 °C	Hairpin Bellows	Gold	60	Board Guide	Female	30 Áin	0.76 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in
Samtec Inc. MEC8-130-02-S-D-EM2	Board Edge Straddle Mount	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Black	-55 °C	125 °C	Hairpin Bellows	Gold	60		Female	30 Áin	0.76 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in
Samtec Inc. MEC8-130-02-L-DV-K	Surface Mount	Liquid Crystal Polymer (LCP)	0.062 in	1.57 mm	Black	-55 °C	125 °C	Hairpin Bellows	Gold	60	Board Guide	Female	10 Áin	0.25 Ám	Phosphor Bronze	Solder	Dual	2	Non Specified - Dual Edge	0.8 mm	0.031 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MEC8-130 Series

Standard Card Edge Connectors 0.80 mm Mini Edge Card Connector, Vertical

Documents

Technical documentation and resources

No documents available
