Technical Specifications
Parameters and characteristics for this part

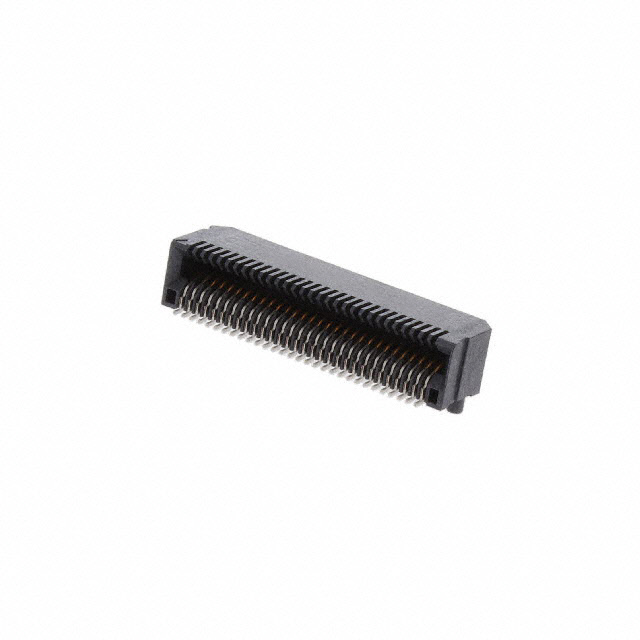

| Specification | MEC8-130-02-L-D-RA1 |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | Non Specified, Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Phosphor Bronze |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | LCP, Liquid Crystal Polymer |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.031 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tray | 21 | $ 7.26 | 1w |
| 42 | $ 6.86 | |||
| 63 | $ 6.61 | |||
| 84 | $ 6.55 | |||
| RS Group | Special/Small Minimum Order (SSM) | 2 | $ 9.28 | 1w |
| 10 | $ 7.41 | |||
| 50 | $ 6.32 | |||
| 100 | $ 5.71 | |||
| 250 | $ 5.21 | |||
| Samtec Inc. | N/A | 21 | $ 7.69 | <1d |
| 42 | $ 7.27 | |||
| 63 | $ 7.01 | |||
| 84 | $ 5.58 | |||
| 483 | $ 5.10 | |||
| 987 | $ 4.14 | |||
| 3318 | $ 3.19 | |||
CAD
3D models and CAD resources for this part
Description
General part information
MEC8-130 Series
Standard Card Edge Connectors 0.80 mm Mini Edge Card Connector, Vertical
