Technical Specifications
Parameters and characteristics for this part
| Specification | MEC8-130-02-L-DV-K-TR |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | Non Specified, Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Phosphor Bronze |
| Contact Type | Hairpin Bellows |
| Features | Board Guide |
| Gender | Female |
| Material - Insulation | LCP, Liquid Crystal Polymer |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.031 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 175 | $ 4.93 | <6d |
| Samtec Inc. | N/A | 1 | $ 5.84 | <1d |
| 25 | $ 5.34 | |||
| 50 | $ 4.84 | |||
| 100 | $ 4.50 | |||
| 500 | $ 4.19 | |||
| 1000 | $ 3.88 | |||
| 2500 | $ 3.21 | |||
| 4375 | $ 2.68 | |||
CAD
3D models and CAD resources for this part
Description
General part information

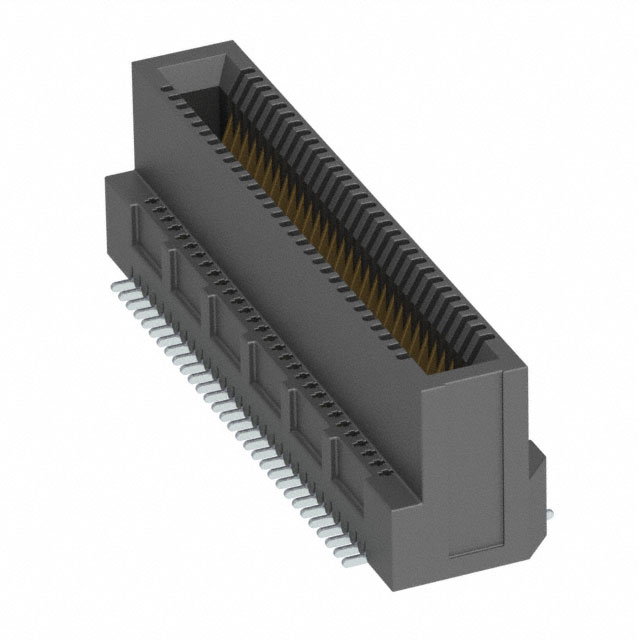

MEC8-130 Series
Standard Card Edge Connectors 0.80 mm Mini Edge Card Connector, Vertical
