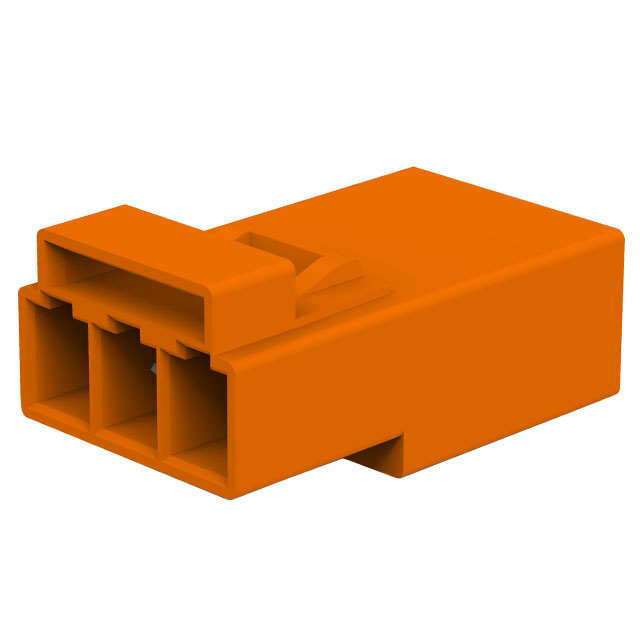

2834055-3
ActiveTE Connectivity Raychem Cable Protection
REC, 3P LATCHED POKE-IN WTW CONN.OE
Deep-Dive with AI
Search across all available documentation for this part.
2834055-3
ActiveTE Connectivity Raychem Cable Protection
REC, 3P LATCHED POKE-IN WTW CONN.OE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834055-3 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A, 8 A |
| Fastening Type | Latch Holder |
| Housing Color | Orange |
| Housing Material | Thermoplastic |
| Mating Cycles | 10 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Style | Cable/Wire to Cable/Wire |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LIGHT-N-LOK Ballast Connector Series
3 Position Ballast Connector, Connector, Poke-In, Wire-to-Wire, 4.5 mm Centerline, Wire & Cable, 16 – 22 AWG, LIGHT-N-LOK Ballast Connector
