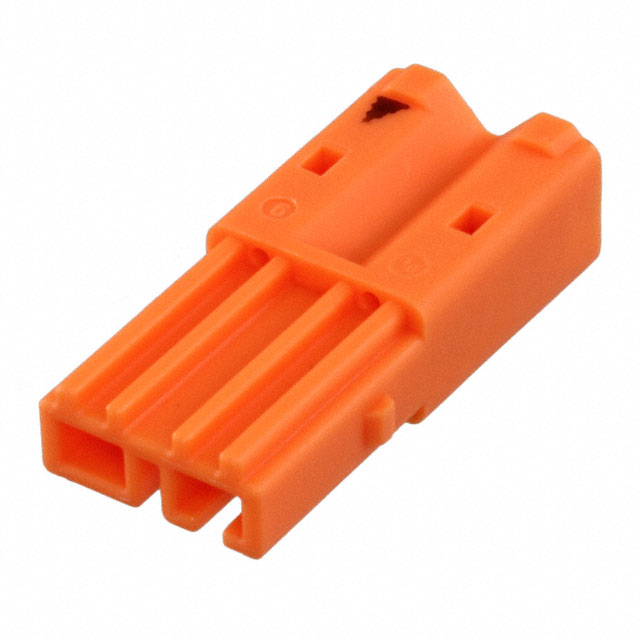

2271180-1 - 2271180-1

2271180-1

Active
TE Connectivity Raychem Cable Protection

PLUG, 2PIN WIRE TO WIRE CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+7
2271180-1 - 2271180-1

2271180-1

Active
TE Connectivity Raychem Cable Protection

PLUG, 2PIN WIRE TO WIRE CONNECTOR

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+7

Technical Specifications

Parameters and characteristics for this part

Specification2271180-1
Connector TypePlug
Contact FinishTin
Contact MaterialCopper Alloy
Current Rating (Amps)3 A
Fastening TypeDetent Lock
Housing ColorOrange
Housing MaterialPolyamide (PA), Nylon
Mating Cycles10
Mounting TypeFree Hanging (In-Line)
Number of Positions2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
StyleCable/Wire to Cable/Wire
Voltage Rating600 V
Wire Gauge [Max]22 AWG
Wire Gauge [Min]17.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.53
10$ 0.44
100$ 0.36
500$ 0.32
1000$ 0.30
5000$ 0.26
10000$ 0.25
NewarkEach 10$ 0.56
25$ 0.51
100$ 0.47
500$ 0.42
1000$ 0.39
2500$ 0.37
5000$ 0.35

Description

General part information

LIGHT-N-LOK Ballast Connector Series

2 Position Ballast Connector, Connector, Poke-In, Wire-to-Wire, 5.7 mm Centerline, Wire & Cable, 18 – 22 AWG, LIGHT-N-LOK Ballast Connector
