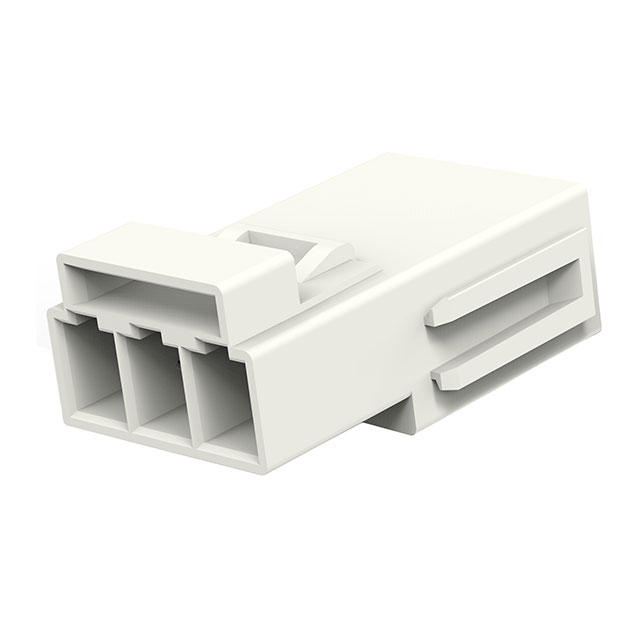

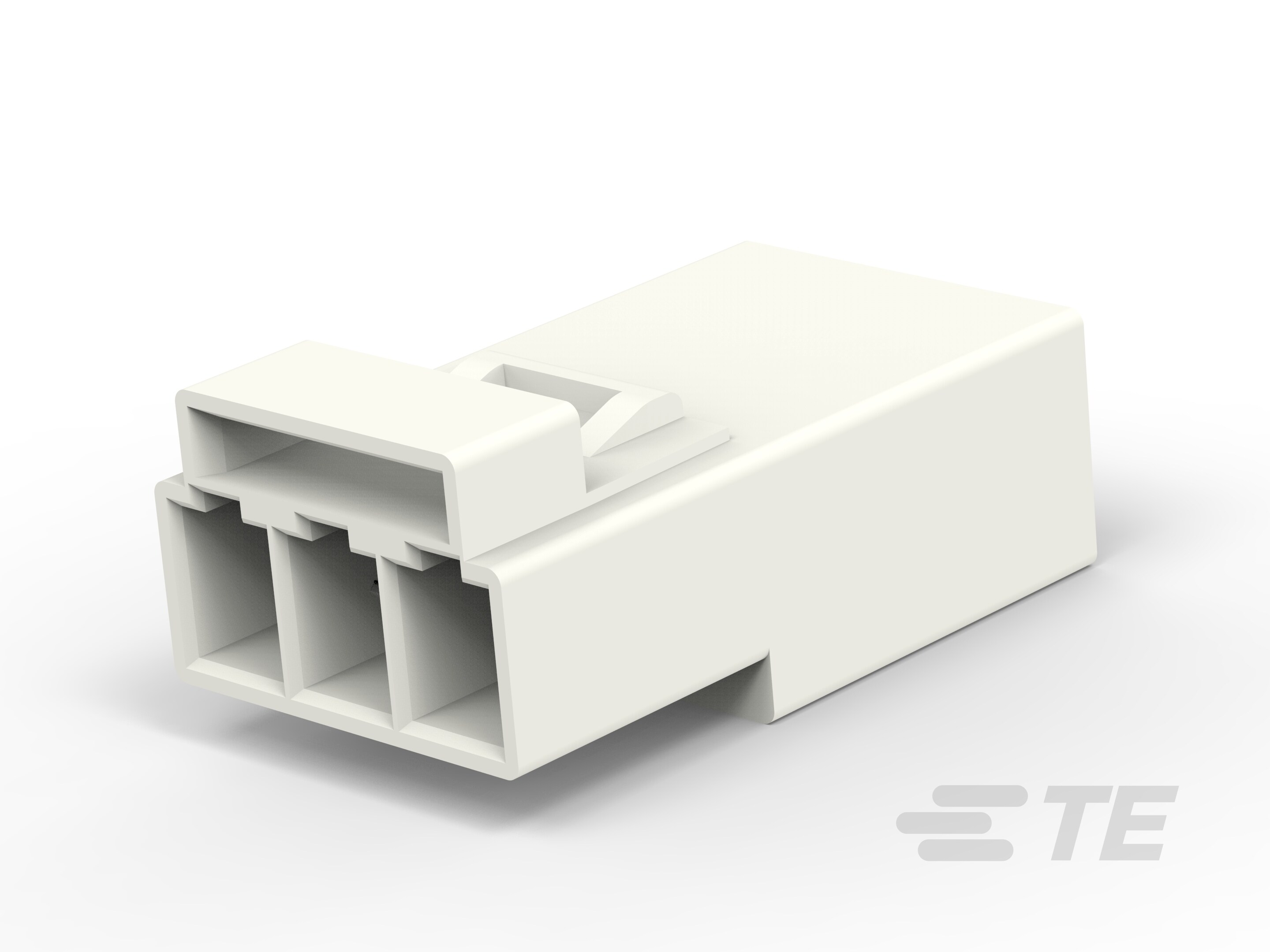

2834055-1
ActiveTE Connectivity Raychem Cable Protection
REC, 3P LATCHED POKE-IN WTW CONN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2834055-1
ActiveTE Connectivity Raychem Cable Protection
REC, 3P LATCHED POKE-IN WTW CONN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834055-1 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A, 8 A |
| Fastening Type | Latch Holder |
| Housing Color | Natural |
| Housing Material | Thermoplastic |
| Mating Cycles | 10 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Style | Cable/Wire to Cable/Wire |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.70 | |
| 10 | $ 0.68 | |||
| 400 | $ 0.51 | |||
| 1200 | $ 0.43 | |||
| 5200 | $ 0.37 | |||
| 10000 | $ 0.35 | |||
Description
General part information
LIGHT-N-LOK Ballast Connector Series
SSL Connector 3 Position Receptacle Cable/Wire to Cable/Wire Poke-In
