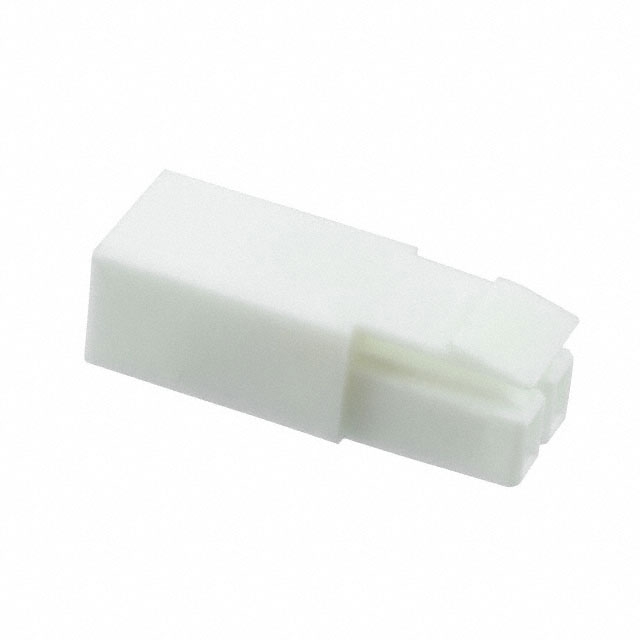

2834048-1
ActiveTE Connectivity Raychem Cable Protection
CONNECTOR, PLUG, POKE-IN, 2POS, 4.5MM
Deep-Dive with AI
Search across all available documentation for this part.
2834048-1
ActiveTE Connectivity Raychem Cable Protection
CONNECTOR, PLUG, POKE-IN, 2POS, 4.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834048-1 |
|---|---|
| Connector Type | Plug |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A, 8 A |
| Fastening Type | Latch Lock |
| Housing Color | Natural |
| Housing Material | Thermoplastic |
| Mating Cycles | 10 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Cable/Wire to Cable/Wire |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LIGHT-N-LOK Ballast Connector Series
2 Position Ballast Connector, Connector, Poke-In, Wire-to-Wire, 4.5 mm [.177 in] Centerline, Wire & Cable, 16 – 22 AWG, LIGHT-N-LOK Ballast Connector
