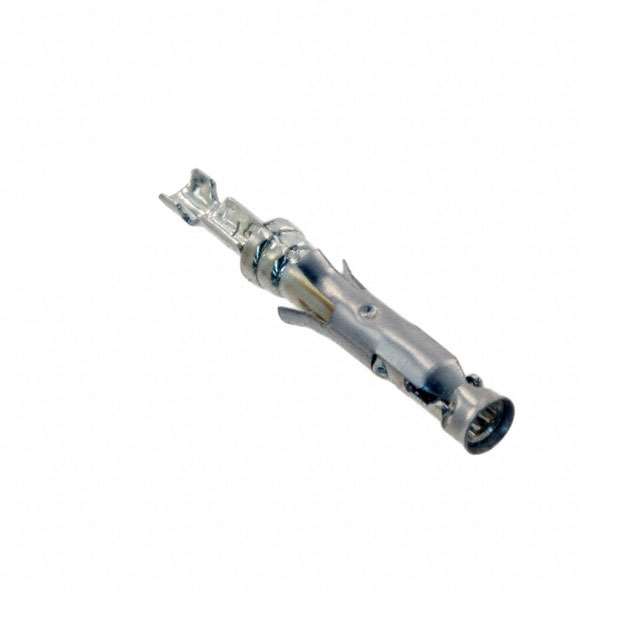

1-66108-5
ActiveTE Connectivity Raychem Cable Protection
III+ SKT,26-24,TIN,STRIP
Deep-Dive with AI
Search across all available documentation for this part.
1-66108-5
ActiveTE Connectivity Raychem Cable Protection
III+ SKT,26-24,TIN,STRIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-66108-5 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
AMP Type III+ Series
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Type | Contact Finish | Contact Material | Pin or Socket |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 20 AWG | 24 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin | Brass | Socket |
TE Connectivity Raychem Cable Protection | 20 AWG | 24 AWG | 15 µin | 0.38 µm | Crimp | Stamped | Gold PdNi +Gold | Brass | Pin |
TE Connectivity Raychem Cable Protection | 16 AWG | 18 AWG | Crimp | Signal Stamped | Tin | Brass | Pin | ||
TE Connectivity Raychem Cable Protection | 20 AWG | 24 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin-Lead | Brass | Socket |
TE Connectivity Raychem Cable Protection | 16 AWG | 18 AWG | 30 Áin | 0.76 Ám | Crimp | Stamped | Gold PdNi +Gold | Brass | Pin |
TE Connectivity Raychem Cable Protection | 26 AWG | 30 AWG | 30 Áin | 0.76 Ám | Crimp | Signal Stamped | Gold | Brass | Socket |
TE Connectivity Raychem Cable Protection | 16 AWG | 18 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin-Lead | Brass | Pin |
TE Connectivity Raychem Cable Protection | 24 AWG | 26 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin | Brass | Socket |
TE Connectivity Raychem Cable Protection | 24 AWG | 26 AWG | 30 Áin | 0.76 Ám | Crimp | Stamped | Gold PdNi +Gold | Brass | Socket |
TE Connectivity Raychem Cable Protection | 24 AWG | 26 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin | Brass | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.86 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.78 | |||
| 50 | $ 0.77 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.53 | |||
| Tape & Reel (TR) | 4000 | $ 0.52 | ||
| 8000 | $ 0.48 | |||
| 12000 | $ 0.47 | |||
Description
General part information
AMP Type III+ Series
Socket Contact, Tin (Sn), Spring Contact Retention, Size 16 Contact Size, Discrete Wire, 26 – 24 AWG, .12 – .2 mm² Wire, Crimp, Brass, AMP Type III+
