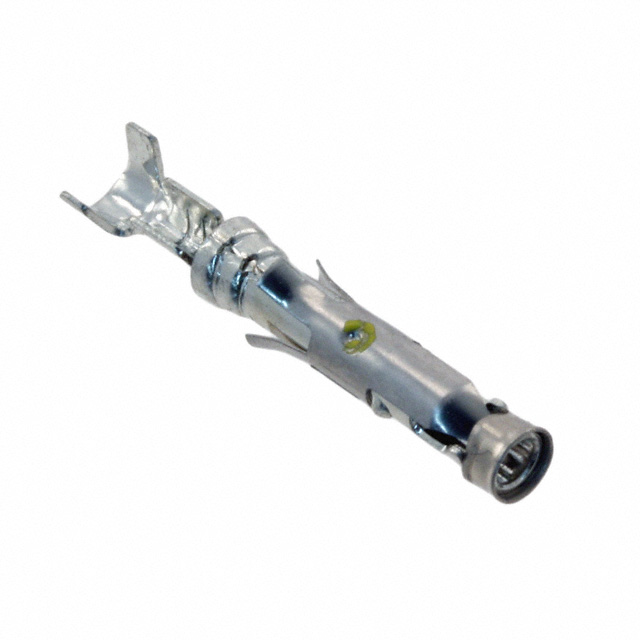

66399-1

Active

TE Connectivity Raychem Cable Protection

CONN SOCKET 20-24AWG TIN CRIMP

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN SOCKET 20-24AWG TIN CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Type	Contact Finish	Contact Material	Pin or Socket
TE Connectivity Raychem Cable Protection 2-66105-0	20 AWG	24 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin	Brass	Socket
TE Connectivity Raychem Cable Protection 66103-3	20 AWG	24 AWG	15 µin	0.38 µm	Crimp	Stamped	Gold PdNi +Gold	Brass	Pin
TE Connectivity Raychem Cable Protection 1-163081-3	16 AWG	18 AWG			Crimp	Signal Stamped	Tin	Brass	Pin
TE Connectivity Raychem Cable Protection 66399-1	20 AWG	24 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin-Lead	Brass	Socket
TE Connectivity Raychem Cable Protection 66098-1	16 AWG	18 AWG	30 Áin	0.76 Ám	Crimp	Stamped	Gold PdNi +Gold	Brass	Pin
TE Connectivity Raychem Cable Protection 66424-1	26 AWG	30 AWG	30 Áin	0.76 Ám	Crimp	Signal Stamped	Gold	Brass	Socket
TE Connectivity Raychem Cable Protection 66098-7	16 AWG	18 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin-Lead	Brass	Pin
TE Connectivity Raychem Cable Protection 1-66108-5	24 AWG	26 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin	Brass	Socket
TE Connectivity Raychem Cable Protection 66108-4	24 AWG	26 AWG	30 Áin	0.76 Ám	Crimp	Stamped	Gold PdNi +Gold	Brass	Socket
TE Connectivity Raychem Cable Protection 1-66109-7	24 AWG	26 AWG	50 µin	1.27 µm	Crimp	Stamped	Tin	Brass	Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Tin-Lead Crimp 20-24 AWG Stamped
