66424-1
ActiveTE Connectivity Raychem Cable Protection

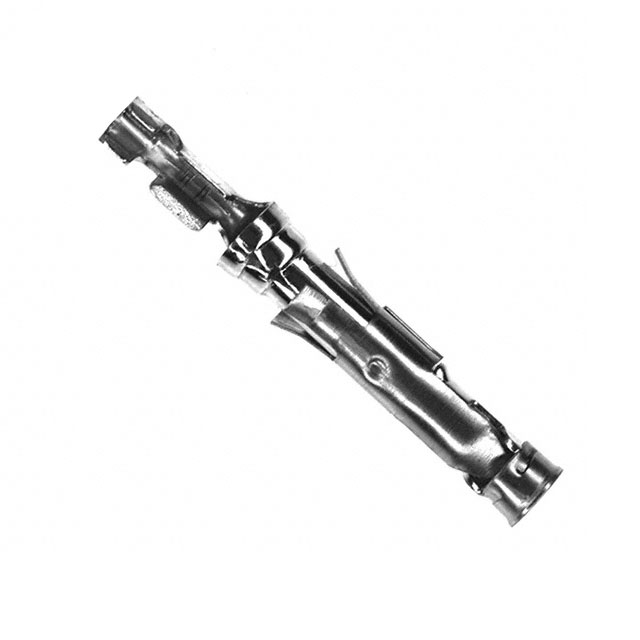

CONN SOCKET 26-30AWG GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
66424-1
ActiveTE Connectivity Raychem Cable Protection
CONN SOCKET 26-30AWG GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 66424-1 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped, Signal |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 26 AWG |
AMP Type III+ Series
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Termination | Type | Contact Finish | Contact Material | Pin or Socket |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 20 AWG | 24 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin | Brass | Socket |
TE Connectivity Raychem Cable Protection | 20 AWG | 24 AWG | 15 µin | 0.38 µm | Crimp | Stamped | Gold PdNi +Gold | Brass | Pin |
TE Connectivity Raychem Cable Protection | 16 AWG | 18 AWG | Crimp | Signal Stamped | Tin | Brass | Pin | ||
TE Connectivity Raychem Cable Protection | 20 AWG | 24 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin-Lead | Brass | Socket |
TE Connectivity Raychem Cable Protection | 16 AWG | 18 AWG | 30 Áin | 0.76 Ám | Crimp | Stamped | Gold PdNi +Gold | Brass | Pin |
TE Connectivity Raychem Cable Protection | 26 AWG | 30 AWG | 30 Áin | 0.76 Ám | Crimp | Signal Stamped | Gold | Brass | Socket |
TE Connectivity Raychem Cable Protection | 16 AWG | 18 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin-Lead | Brass | Pin |
TE Connectivity Raychem Cable Protection | 24 AWG | 26 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin | Brass | Socket |
TE Connectivity Raychem Cable Protection | 24 AWG | 26 AWG | 30 Áin | 0.76 Ám | Crimp | Stamped | Gold PdNi +Gold | Brass | Socket |
TE Connectivity Raychem Cable Protection | 24 AWG | 26 AWG | 50 µin | 1.27 µm | Crimp | Stamped | Tin | Brass | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 48000 | $ 0.85 | |
Description
General part information
AMP Type III+ Series
Socket Contact Gold Crimp 26-30 AWG Signal, Stamped
