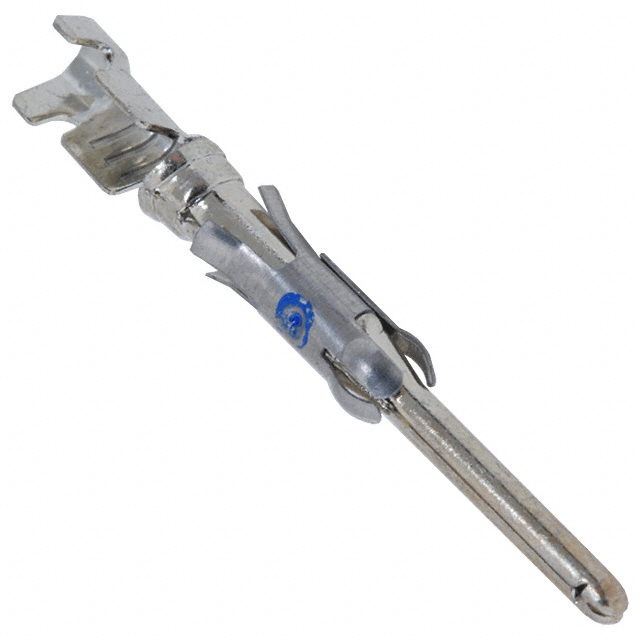

66098-7
ActiveTE Connectivity Raychem Cable Protection
III+ PIN,18-16,TIN-LEAD,STRIP
Deep-Dive with AI
Search across all available documentation for this part.
66098-7
ActiveTE Connectivity Raychem Cable Protection
III+ PIN,18-16,TIN-LEAD,STRIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 66098-7 |
|---|---|
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.61 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.39 | |||
| Tape & Reel (TR) | 4000 | $ 0.39 | ||
| 8000 | $ 0.36 | |||
| 12000 | $ 0.34 | |||
Description
General part information
AMP Type III+ Series
Pin Contact, Tin (Sn), Locking Spring Contact Retention, Size 16 Contact Size, Discrete Wire, 18 – 16 AWG, .8 – 1.4 mm² Wire, Crimp, AMP Type III+
