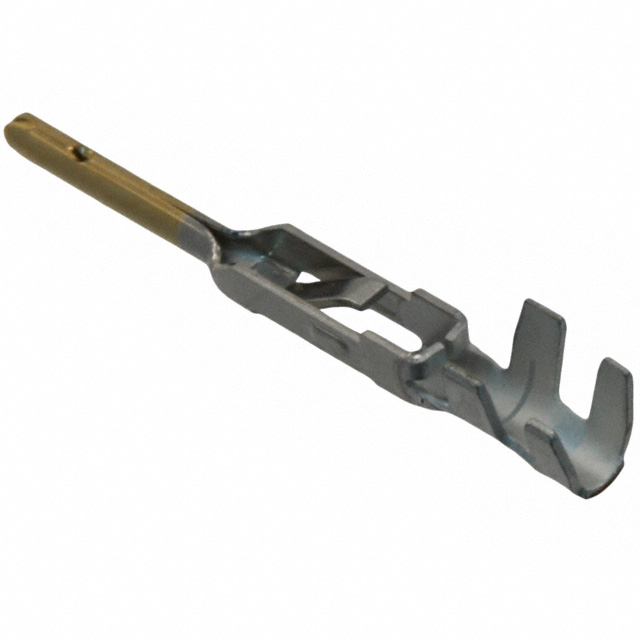

JN1-22-20P-R-10000

Active

JAE Electronics

CONTACT PIN 20-21AWG CRIMP GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONTACT PIN 20-21AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Finish	Type	Contact Size	Contact Type	Features	Termination Finish	Contact Material	Contact Termination	Wire Gauge or Range - AWG
JAE Electronics JN1-22-20P-R-PKG100	20 AWG	21 AWG	Gold	Signal Stamped	22	Pin	Insulation Support	Tin	Copper Alloy	Crimp
JAE Electronics JN1-22-26S-10000	26 AWG	28 AWG	Gold	Signal Stamped	22	Socket	Insulation Support	Nickel	Copper Alloy	Crimp
JAE Electronics JN1-22-20S-R-PKG100	20 AWG	21 AWG	Gold	Signal Stamped	22	Socket	Insulation Support	Tin	Copper Alloy	Crimp
JAE Electronics JN1-22-22S-10000	21 AWG	25 AWG	Gold	Signal Stamped	22	Socket	Insulation Support	Nickel	Copper Alloy	Crimp
JAE Electronics JN1-22-22F-PKG100			Gold	Signal Stamped	22	Socket			Copper Alloy	Solder Cup	20 AWG
JAE Electronics JN1-22-22S-PKG100	21 AWG	25 AWG	Gold	Signal Stamped	22	Socket	Insulation Support	Nickel	Copper Alloy	Crimp
JAE Electronics JN1-22-22F-PKG10			Gold	Signal Stamped	22	Socket			Copper Alloy	Solder Cup	20 AWG
JAE Electronics JN1-22-20P-R-10000	20 AWG	21 AWG	Gold	Signal Stamped	22	Pin	Insulation Support	Tin-Lead	Copper Alloy	Crimp
JAE Electronics JN1-22-22P-10000	21 AWG	25 AWG	Gold	Signal Stamped	22	Pin	Insulation Support	Nickel	Copper Alloy	Crimp
JAE Electronics JN1-22-22P-PKG100	21 AWG	25 AWG	Gold	Signal Stamped	22	Pin	Insulation Support	Nickel	Copper Alloy	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact 20-21 AWG Size 22 Crimp Gold
