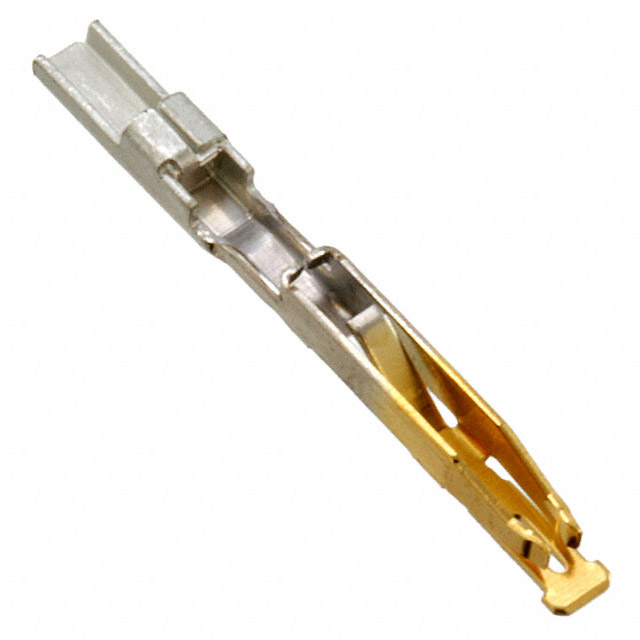

JN1-22-2 Series

Part	Termination Finish	Contact Termination	Contact Material	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Features	Contact Finish	Contact Finish Thickness	Contact Type	Type	Contact Size	Wire Gauge or Range - AWG
JAE Electronics JN1-22-20P-R-PKG100	Tin	Crimp	Copper Alloy	20 AWG	21 AWG	Insulation Support	Gold	3.94 µin	Pin	Signal Stamped	22
JAE Electronics JN1-22-20S-R-10000	Nickel	Crimp	Copper Alloy	20 AWG	21 AWG	Insulation Support	Gold	3.94 µin	Socket	Signal Stamped	22
JAE Electronics JN1-22-26S-10000	Nickel	Crimp	Copper Alloy	26 AWG	28 AWG	Insulation Support	Gold	3.94 µin	Socket	Signal Stamped	22
JAE Electronics JN1-22-20S-R-PKG100	Tin	Crimp	Copper Alloy	20 AWG	21 AWG	Insulation Support	Gold	3.94 µin	Socket	Signal Stamped	22
JAE Electronics JN1-22-26P-10000	Nickel	Crimp	Copper Alloy	26 AWG	28 AWG	Insulation Support	Gold	3.94 µin	Pin	Signal Stamped	22
JAE Electronics JN1-22-22S-10000	Nickel	Crimp	Copper Alloy	21 AWG	25 AWG	Insulation Support	Gold	3.94 µin	Socket	Signal Stamped	22
JAE Electronics JN1-22-22F-PKG100		Solder Cup	Copper Alloy				Gold	3.94 µin	Socket	Signal Stamped	22	20 AWG
JAE Electronics JN1-22-22S-PKG100	Nickel	Crimp	Copper Alloy	21 AWG	25 AWG	Insulation Support	Gold	3.94 µin	Socket	Signal Stamped	22
JAE Electronics JN1-22-22F-PKG10		Solder Cup	Copper Alloy				Gold	3.94 µin	Socket	Signal Stamped	22	20 AWG
JAE Electronics JN1-22-20P-R-10000	Tin-Lead	Crimp	Copper Alloy	20 AWG	21 AWG	Insulation Support	Gold	3.94 µin	Pin	Signal Stamped	22
