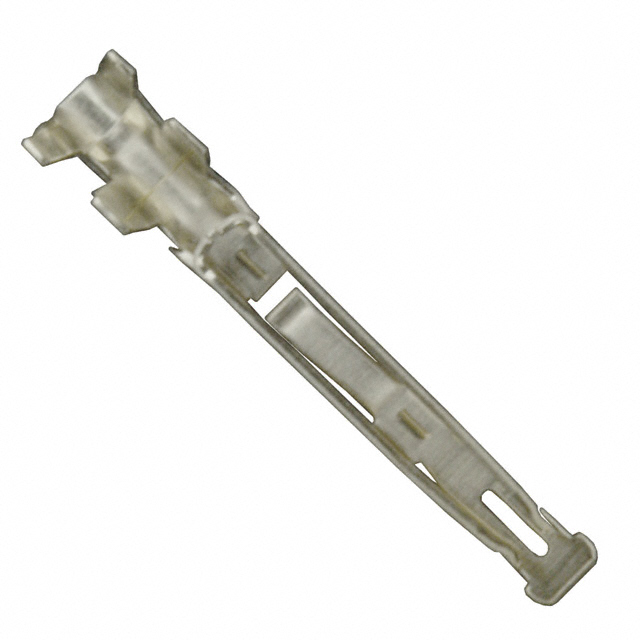

JN1-22-22S-PKG100
ActiveJAE Electronics
CONTACT SOCKET 21-25AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN1-22-22S-PKG100 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Size | 22 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Features | Insulation Support |
| Termination Finish | Nickel |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG [Max] | 25 AWG |
| Wire Gauge or Range - AWG [Min] | 21 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.34 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.16 | |||
Description
General part information
JN1-22-2 Series
Socket Contact 21-25 AWG Size 22 Crimp Gold
