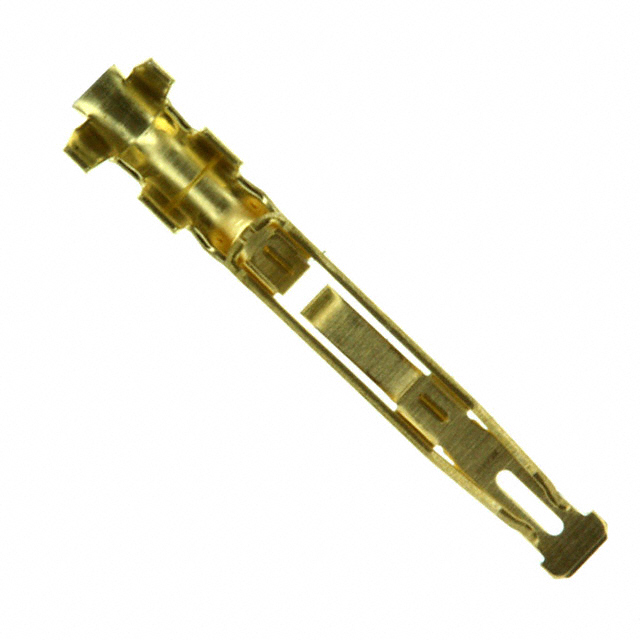

JN1-22-26S-10000
ActiveJAE Electronics
CONTACT SOCKET 26-28AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JN1-22-26S-10000
ActiveJAE Electronics
CONTACT SOCKET 26-28AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN1-22-26S-10000 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Size | 22 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Features | Insulation Support |
| Termination Finish | Nickel |
| Type | Stamped, Signal |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.17 | |||
| Tape & Reel (TR) | 10000 | $ 0.15 | ||
| 20000 | $ 0.14 | |||
| 30000 | $ 0.14 | |||
| 50000 | $ 0.14 | |||
Description
General part information
JN1-22-2 Series
Socket Contact 26-28 AWG Size 22 Crimp Gold
