TSM085N03PQ33

Active

Taiwan Semiconductor Corporation

30V, 52A, SINGLE, N-CHANNEL LOW VOLTAGE MOSFETS

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

30V, 52A, SINGLE, N-CHANNEL LOW VOLTAGE MOSFETS

Technical Specifications

Parameters and characteristics for this part

Specification	TSM085N03PQ33

Current - Continuous Drain (Id) @ 25°C	13 A, 52 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	10 V, 4.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	14.3 nC
Input Capacitance (Ciss) (Max) @ Vds	817 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

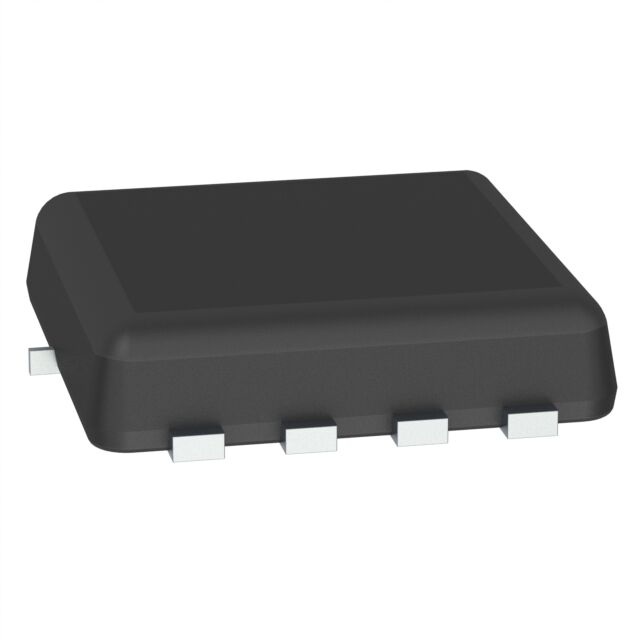

Package / Case	8-PowerWDFN
Power Dissipation (Max)	37 W, 2.3 W
Rds On (Max) @ Id, Vgs	8.5 mOhm
Supplier Device Package	8-PDFN (3.1x3.1)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	2.5 V

Part	Vgs (Max)	Rds On (Max) @ Id, Vgs	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id	FET Type	Package / Case	Power Dissipation (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Technology	Power Dissipation (Max)	Package / Case [y]	Package / Case [x]
Taiwan Semiconductor Corporation TSM085N03PQ33 RGG	20 V	8.5 mOhm	-55 °C	150 °C	8-PDFN (3.1x3.1)	817 pF	Surface Mount	52 A	2.5 V	N-Channel	8-PowerWDFN	37 W	14.3 nC	4.5 V 10 V	30 V	MOSFET (Metal Oxide)
Taiwan Semiconductor Corporation TSM085P03CV RGG	20 V		-55 °C	150 °C	8-PDFN (3.1x3.1)		Surface Mount	64 A	2.5 V	P-Channel	8-PowerWDFN	50 W	55 nC	4.5 V 10 V	30 V	MOSFET (Metal Oxide)
Taiwan Semiconductor Corporation TSM085N03PQ33	20 V	8.5 mOhm	-55 °C	150 °C	8-PDFN (3.1x3.1)	817 pF	Surface Mount	13 A 52 A	2.5 V	N-Channel	8-PowerWDFN		14.3 nC	4.5 V 10 V	30 V	MOSFET (Metal Oxide)	2.3 W 37 W
Taiwan Semiconductor Corporation TSM085P03CS RLG	20 V	8.5 mOhm	-55 °C	150 °C	8-SOP	3216 pF	Surface Mount	34 A	2.5 V	P-Channel	8-SOIC	14 W	56 nC	4.5 V 10 V	30 V	MOSFET (Metal Oxide)		3.9 mm	0.154 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.53

General part information

N-Channel 30 V 13A (Ta), 52A (Tc) 2.3W (Ta), 37W (Tc) Surface Mount 8-PDFN (3.1x3.1)
