| Clock Rate | 60 MHz | 1 - 900 MHz |
| Clock Rate | - | 364.5 - 405 MHz |
| Clock Rate | - | 513 - 810 MHz |
| Clock Rate | - | 256 - 720 MHz |
| Connectivity | - | I2C, EBI/EMI, UART/USART, CANbus, USB, uPP, SPI, SCI, McBSP, LINbus |
| Core Processor | - | C28x, C2xx DSP |
| Core Size | - | 32-Bit Single-Core, 16-Bit |
| Core Size | - | 32-Bit Dual-Core |
| Data Converters | - | 5 - 16 |
| Data Converters | - | 10 - 12 b |
| Data Converters | - | D/A 3x12b, A/D 20x12b, A/D 20x16b, A/D 12x16b, A/D 24x12b, A/D 14x12b, 14x12b, A/D 13x12b, A/D 9x16b, A/D 14x16b, 12x12b, D/A 1x12b, A/D 17x12b |
| Data Converters | - | 6 - 12 b |
| Data Converters | - | 10 - 12 b |
| Data Converters | - | 4 |
| Data Converters | - | 10 |
| Grade | - | Automotive |
| Interface | Communication Ports | McASP, PCI, UART, McBSP, 10/100 Ethernet MAC, I2C, HPI, Host Interface, SPI, Ethernet MAC, PCIe, SRIO, EBI/EMI, TSIP, 10/100/1000 Ethernet, UTOPIA, SSP, USB, I2S, MMC/SD, UART/USART, TDM, BSP, Ethernet, Serial ATA, SD/SDIO, Telecom, UTPOIA, ASP, Serial Port, SCI, CAN, Duplex Serial Port, 10/100/1000 Ethernet MAC, UPP, DDR3, Communication Ports, LCD, McSPI, UHPI, MMC/SD/SDIO, SATA, Parallel |
| Interface | - | Host Interface |
| Interface | - | Duplex Serial Port |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Non-Volatile Memory | External | ROM, External, FLASH |
| Non-Volatile Memory | - | 1.088 - 768 kB |
| Non-Volatile Memory | - | 8 kB |
| Number of I/O | - | 13 - 169 |
| On-Chip RAM | - | 1 - 896 kB |
| On-Chip RAM | - | 2.1 - 248 MB |
| On-Chip RAM [custom] | 8 kB | 8 kB |
| Operating Temperature | - | -40 - 105 °C |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -55 °C |
| Operating Temperature [Max] | 85 °C | 70 - 125 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Oscillator Type | - | Internal, External |

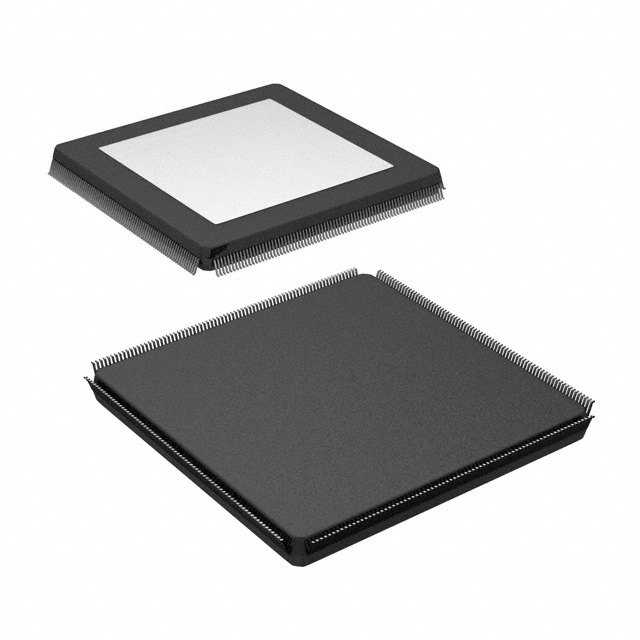

| Package / Case | 304-BFQFP Exposed Pad | 376-BBGA Exposed Pad, 176-LQFP, 548-BBGA, FCBGA, 176-BGA, 841-BFBGA, 176-LQFP Exposed Pad, 337-LFBGA, 361-LFBGA, 80-LQFP, 288-LFBGA, 532-BFBGA, 100-LQFP, 697-BFBGA, 38-TSSOP, 256-BGA, 196-LFBGA, 64-TQFP, 132-BQFP Bumpered, 100-TQFP Exposed Pad, 128-LQFP, 561-BFBGA, FCCSPBGA, 1031-BFBGA, 143-VFBGA, 144-LQFP, 144-LFBGA, 548-BFBGA, 737-BFBGA, 272-BBGA, 48-LQFP, 529-BFBGA, 338-LFBGA, 240-LFBGA, 68-LCC (J-Lead), 688-BFBGA, FCBGA Exposed Pad, 625-BFBGA, 201-LFBGA, 100-LFBGA, 257-LFBGA, 684-BFBGA, 181-BCPGA Exposed Pad, 181-CPGA, 100-BQFP, 56-VFQFN Exposed Pad, 325-BFCPGA Exposed Pad, 384-FBGA, 144-TQFP Exposed Pad, 352-BBGA, FCBGA Exposed Pad, 288-BBGA, 169-LFBGA, 144-BQFP, 388-BBGA, 40-DIP, 304-BFQFP Exposed Pad, 80-TQFP Exposed Pad, 352-BBGA, 352-LBGA, 305-BFCPGA Exposed Pad, 32-LQFP, 44-LCC (J-Lead), 340-FBGA Exposed Pad, 176-LFBGA, 208-LQFP Exposed Pad, 80-BQFP, 64-BQFP, 68-BCPGA Exposed Pad, 384-BFBGA |
| Package / Case | - | 6.1 mm |
| Package / Case | - | 0.24 " |
| Package / Case | - | 15.24 mm |
| Package / Case | - | 0.6 in |
| Peripherals | - | WDT, DMA, PWM, POR, Brown-out Detect/Reset |
| Program Memory Size | - | 1 - 512 KB |
| Program Memory Type | - | FLASH, ROMless |
| Qualification | - | AEC-Q100 |
| RAM Size | - | 1 - 102 K |
| RAM Size | - | 82K x 16, 6K x 16, 4K x 16, 2K x 8, 18K x 16, 5K, 5K x 16 |
| Speed | - | 20 - 200 MHz |
| Supplier Device Package | 304-PQFP (40x40) | 376-BGA (23x23), 176-LQFP (24x24), 548-FCBGA (27x27), 176-BGA (15x15), 841-FCBGA (24x24), 176-HLQFP (24x24), 337-NFBGA (16x16), 361-NFBGA, 288-BGA Microstar (16x16), 532-FC/CSP (23x23), 100-LQFP (14x14), 697-FCBGA (24x24), 38-TSSOP, 256-BGA (17x17), 196-NFBGA (10x10), 361-NFBGA (13x13), 64-TQFP (10x10), 132-BQFP, 100-HTQFP (14x14), 128-LQFP (14x14), 561-FC/CSP (23x23), 1031-FCBGA (25x25), 143-BGA MICROSTAR JUNIOR (7x7), 144-LQFP (20x20), 144-BGA MICROSTAR (12x12), 548-FC/CSP (23x23), 256-BGA (27x27), 737-FCBGA (24x24), 272-BGA (27x27), 48-LQFP (7x7), 337-BGA (13x13), 529-FCBGA (19x19), 338-BGA (13x13), 179-NFBGA (12x12), 179-BGA MicroStar (12x12), 240-BGA MICROSTAR, 68-PLCC (24.23x24.23), 688-FCBGA (23x23), 561-FCBGA (23x23), 625-FCBGA (21x21), 144-NFBGA (12x12), 532-FCBGA (23x23), 118-BGA MICROSTAR JUNIOR (7x7), 201-NFBGA (15x15), 100-BGA MICROSTAR (10x10), 257-BGA MICROSTAR (16x16), 684-FCBGA (23x23), 181-CPGA (39x39), 181-CPGA, 100-QFP (20x14), 56-VQFN (7x7), 325-CPGA (47.25x47.25), 384-FC/CSP (18x18), 144-HTQFP (20x20), 352-FCBGA (27x27), 240-NFBGA (15x15), 288-FCBGA (23x23), 201-BGA MICROSTAR (15x15), 169-BGA MicroStar (12x12), 548-FCBGA, 144-QFP (28x28), 288-NFBGA (16x16), 388-BGA (35x35), 40-PDIP, 304-PQFP (40x40), 80-HTQFP (12x12), 352-BGA (35x35), 305-CPGA, 32-LQFP (7x7), 100-NFBGA (10x10), 44-PLCC, 340-BGA (18x18), 176-BGA MICROSTAR (15x15), 352-FCBGA (35x35), 208-HLQFP (28x28), 80-QFP (14x20), 64-QFP (14x20), 68-CPGA (24.38x24.38), 384-FCBGA (18x18) |
| Supplier Device Package | - | 16 - 47.25 |
| Supplier Device Package | - | 16 - 47.25 |
| Type | Floating Point | Fixed Point, Fixed/Floating Point, Digital Media System-on-Chip (DMSoC), Floating Point, DSP+ARM® |
| Voltage - Core | 5 V | 1 - 5 V |
| Voltage - Core | - | 1 - 1.6 V |
| Voltage - Core | - | Variable |
| Voltage - I/O | 5 V | 1 - 5 V |
| Voltage - Supply (Vcc/Vdd) | - | 1.14 - 4.5 V |
| Voltage - Supply (Vcc/Vdd) | - | 1.26 - 5.5 V |
