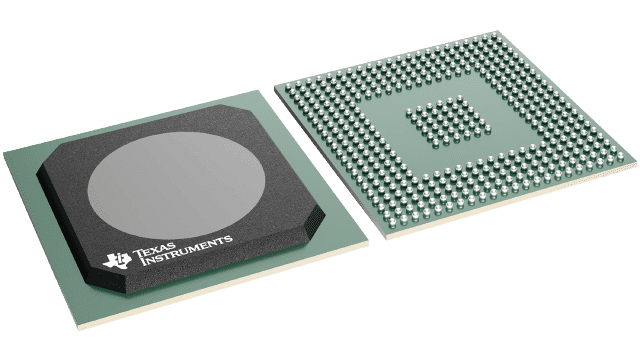

TMS320C6424ZDU7

Active

Texas Instruments

C64X+ FIXED POINT DSP- UP TO 600MHZ, 16/8-BIT EMIFA, 32/16 BIT DDR2, SDRAM

Deep-Dive with AI

Search across all available documentation for this part.

Documents5Vin C642x Power using a PMIC (Multi-output DC/DC Converter)TMS320C642x DSP Enhanced DMA (EDMA) Controller User's Guide (Rev. A)+40

TMS320C6424ZDU7

Active

Texas Instruments

C64X+ FIXED POINT DSP- UP TO 600MHZ, 16/8-BIT EMIFA, 32/16 BIT DDR2, SDRAM

Deep-Dive with AI

Documents5Vin C642x Power using a PMIC (Multi-output DC/DC Converter)TMS320C642x DSP Enhanced DMA (EDMA) Controller User's Guide (Rev. A)+40

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMS320C6424ZDU7	TMS320C6424 Series

Clock Rate	700 MHz	400 - 700 MHz
Interface	I2C, HPI, EBI/EMI, McASP, McBSP, UART, 10/100 Ethernet MAC	I2C, HPI, EBI/EMI, McASP, McBSP, UART, 10/100 Ethernet MAC
Mounting Type	Surface Mount	Surface Mount
Non-Volatile Memory	64 kB	64 kB
Non-Volatile Memory	ROM	ROM
On-Chip RAM	240 kB	240 kB
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	0 °C	0 °C
Package / Case	376-BBGA Exposed Pad	376-BBGA Exposed Pad, 361-LFBGA
Supplier Device Package	376-BGA (23x23)	376-BGA (23x23), 361-NFBGA
Supplier Device Package	-	16
Supplier Device Package	-	16
Type	Fixed Point	Fixed Point
Voltage - Core	1.05 V, 1.2 V	1.05 - 1.2 V
Voltage - I/O	3.3 V, 1.8 V	1.8 - 3.3 V

TMS320C6424 Series

C64x+ fixed point DSP- up to 600MHz, 16/8-Bit EMIFA, 32/16 Bit DDR2, SDRAM

Part	Operating Temperature [Max]	Non-Volatile Memory	Non-Volatile Memory	Mounting Type	Package / Case	Type	Voltage - I/O	On-Chip RAM	Supplier Device Package	Clock Rate	Voltage - Core	Interface	Supplier Device Package [x]	Supplier Device Package [y]
Texas Instruments TMS320C6424ZDU7	90 °C	64 kB	ROM	Surface Mount	376-BBGA Exposed Pad	Fixed Point	1.8 V, 3.3 V	240 kB	376-BGA (23x23)	700 MHz	1.05 V, 1.2 V	10/100 Ethernet MAC, EBI/EMI, HPI, I2C, McASP, McBSP, UART
Texas Instruments TMS320C6424ZWT7	90 °C	64 kB	ROM	Surface Mount	361-LFBGA	Fixed Point	1.8 V, 3.3 V	240 kB	361-NFBGA	700 MHz	1.05 V, 1.2 V	10/100 Ethernet MAC, EBI/EMI, HPI, I2C, McASP, McBSP, UART	16	16
Texas Instruments TMS320C6424ZDU6	90 °C	64 kB	ROM	Surface Mount	376-BBGA Exposed Pad	Fixed Point	1.8 V, 3.3 V	240 kB	376-BGA (23x23)	600 MHz	1.05 V, 1.2 V	10/100 Ethernet MAC, EBI/EMI, HPI, I2C, McASP, McBSP, UART
Texas Instruments TMS320C6424ZDU4	90 °C	64 kB	ROM	Surface Mount	376-BBGA Exposed Pad	Fixed Point	1.8 V, 3.3 V	240 kB	376-BGA (23x23)	400 MHz	1.05 V, 1.2 V	10/100 Ethernet MAC, EBI/EMI, HPI, I2C, McASP, McBSP, UART
Texas Instruments TMS320C6424ZWT4	90 °C	64 kB	ROM	Surface Mount	361-LFBGA	Fixed Point	1.8 V, 3.3 V	240 kB	361-NFBGA	400 MHz	1.05 V, 1.2 V	10/100 Ethernet MAC, EBI/EMI, HPI, I2C, McASP, McBSP, UART	16	16
Texas Instruments TMS320C6424ZWT5	90 °C	64 kB	ROM	Surface Mount	361-LFBGA	Fixed Point	1.8 V, 3.3 V	240 kB	361-NFBGA	500 MHz	1.05 V, 1.2 V	10/100 Ethernet MAC, EBI/EMI, HPI, I2C, McASP, McBSP, UART	16	16
Texas Instruments TMS320C6424ZWT6	90 °C	64 kB	ROM	Surface Mount	361-LFBGA	Fixed Point	1.8 V, 3.3 V	240 kB	361-NFBGA	600 MHz	1.05 V, 1.2 V	10/100 Ethernet MAC, EBI/EMI, HPI, I2C, McASP, McBSP, UART	16	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 38.68
Texas Instruments	JEDEC TRAY (5+1)	1	$ 52.16
		100	$ 46.36
		250	$ 38.11
		1000	$ 34.09

Description

General part information

TMS320C6424 Series

The TMS320C64x+™ DSPs (including the TMS320C6424 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The C6424 device is based on the third-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for digital signal processor applications. The C64x+™ devices are upward code-compatible from previous devices that are part of the C6000™ DSP platform. The C64x™ DSPs support added functionality and have an expanded instruction set from previous devices.

Any reference to the C64x DSP or C64x CPU also applies, unless otherwise noted, to the C64x+ DSP and C64x+ CPU, respectively.

With performance of up to 4800 million instructions per second (MIPS) at a clock rate of 600 MHz, the C64x+ core offers solutions to high-performance DSP programming challenges. The DSP core possesses the operational flexibility of high-speed controllers and the numerical capability of array processors. The C64x+ DSP core processor has 64 general-purpose registers of 32-bit word length and eight highly independent functional units-two multipliers for a 32-bit result and six arithmetic logic units (ALUs). The eight functional units include instructions to accelerate the performance in telecom, audio, and industrial applications. The DSP core can produce four 16-bit multiply-accumulates (MACs) per cycle for a total of 2400 million MACs per second (MMACS), or eight 8-bit MACs per cycle for a total of 4800 MMACS. For more details on the C64x+ DSP, see the TMS320C64x/C64x+ DSP CPU and Instruction Set Reference Guide (literature number SPRU732).
