Technical Specifications
Parameters and characteristics for this part
| Specification | 2204535-1 |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Silver |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Contact Layout, Typical | 6 Power |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ELCON Mini Series

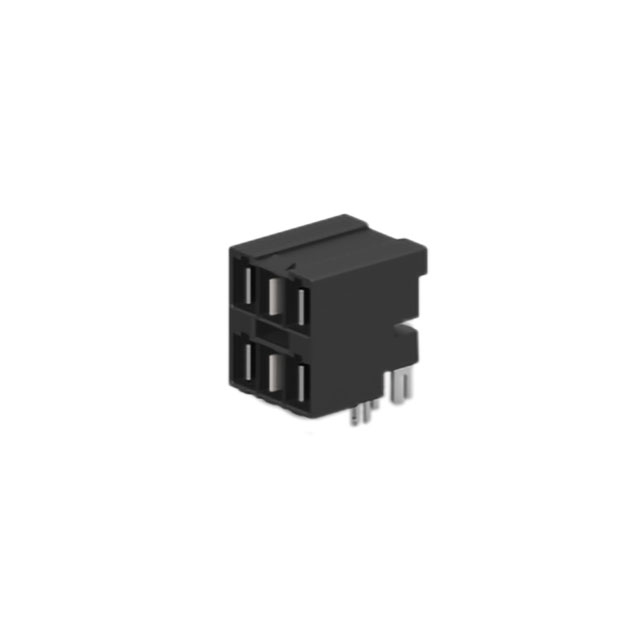

PCB Mount Header, Right Angle, Cable-to-Board, 6 Position, 5.7 mm [.224 in] Centerline, Fully Shrouded, Silver (Ag), Through Hole - Solder, ELCON Mini
