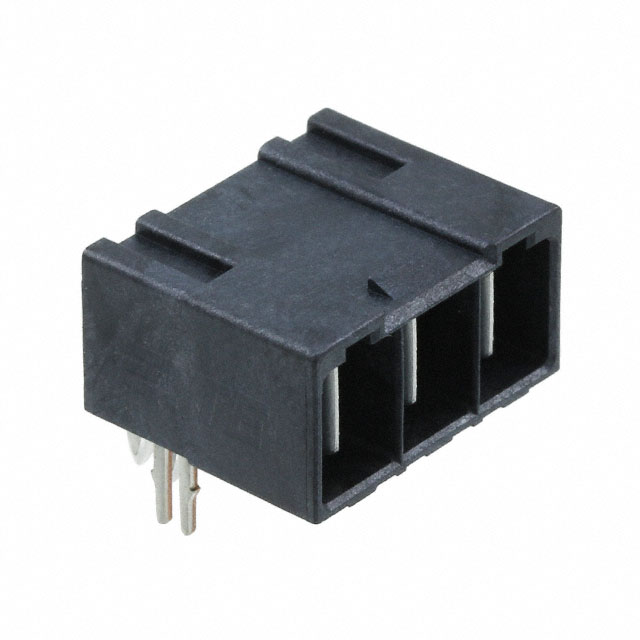

2204581-2
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER HDR 3 POS PRESS FIT RA THRU-HOLE 3 TERMINAL 1 PORT T/R
Deep-Dive with AI
Search across all available documentation for this part.
2204581-2
ActiveTE Connectivity Raychem Cable Protection
CONN HEADER HDR 3 POS PRESS FIT RA THRU-HOLE 3 TERMINAL 1 PORT T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2204581-2 |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Contact Finish | Silver |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Contact Layout, Typical | 3 Power |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.45 | |
| 10 | $ 3.88 | |||
| 25 | $ 3.57 | |||
| 50 | $ 3.40 | |||
| 100 | $ 3.28 | |||
| 250 | $ 3.16 | |||
| 500 | $ 3.09 | |||
| Tape & Reel (TR) | 1000 | $ 3.04 | ||
| 2000 | $ 3.01 | |||
| 3000 | $ 2.99 | |||
Description
General part information
ELCON Mini Series
PCB Mount Header, Right Angle, Cable-to-Board, 3 Position, 5.7 mm [.224 in] Centerline, Fully Shrouded, Silver (Ag), ELCON Mini
