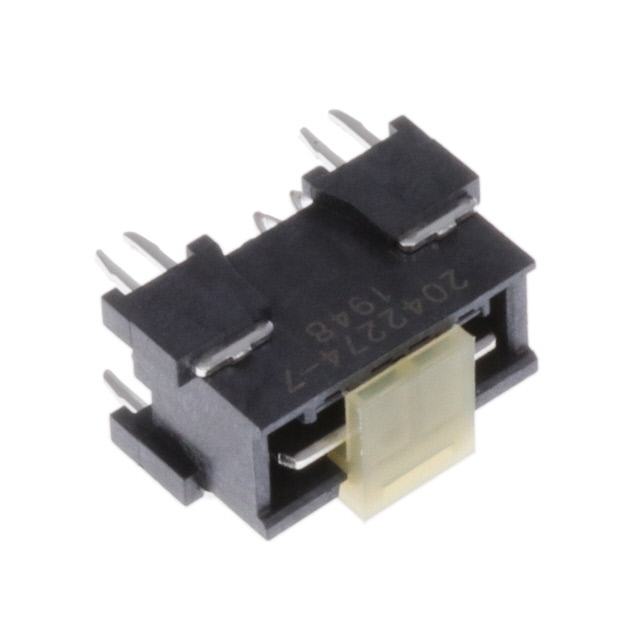

2042274-7

Active

TE Connectivity Raychem Cable Protection

CONN HEADER 2POS PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2042274-7

Active

TE Connectivity Raychem Cable Protection

CONN HEADER 2POS PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2042274-7

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	3 µm
Contact Finish Thickness	118.1 µin
Contact Layout, Typical	2 Power
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination	Solder
Voltage Rating	500 V

ELCON Mini Series

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Pitch [x]	Pitch [x]	Stacking Direction	Contact Termination	Row Spacing	Row Spacing	Fastening Type	Material - Insulation	Color	Contact Type	Number of Positions	Note	Voltage Rating	Number of Rows	Connector Type	Number of Positions Loaded	Material Flammability Rating	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical	Contact Finish
TE Connectivity Raychem Cable Protection 2173200-1	Panel Lock	125 °C	-40 °C	Free Hanging (In-Line)	0.307 in	7.8 mm	Top to Bottom and Side to Side	Crimp	0.246 in	6.25 mm	Latch Lock	Polybutylene Terephthalate (PBT) Glass Filled	Black	Female Blade Socket	4	Contacts Not Included	60 VDC	2	Receptacle
TE Connectivity Raychem Cable Protection 2042274-2		125 °C	-40 °C	Through Hole									Black		2		500 V	1	Header Male Blades	All	UL94 V-0	Solder	3 µm	118.1 µin	2 Power	Silver
TE Connectivity Raychem Cable Protection 2042274-1		125 °C	-40 °C	Through Hole									Black		2		500 V	1	Header Male Blades	All	UL94 V-0	Solder	3 µm	118.1 µin	2 Power	Silver
TE Connectivity Raychem Cable Protection 2042274-6		125 °C	-40 °C	Through Hole									Black		2		500 V	1	Header Male Blades	All	UL94 V-0	Solder	3 µm	118.1 µin	2 Power	Gold
TE Connectivity Raychem Cable Protection 2042274-7		125 °C	-40 °C	Through Hole									Black		2		500 V	1	Header Male Blades	All	UL94 V-0	Solder	3 µm	118.1 µin	2 Power	Gold
TE Connectivity Raychem Cable Protection 2204535-1		105 ░C	-40 °C	Through Hole Right Angle									Black		6			2	Header Male Blades	All	UL94 V-0	Solder	0.076 Ám	3 Áin	6 Power	Silver
TE Connectivity Raychem Cable Protection 2204581-2		105 ░C	-40 °C	Through Hole Right Angle									Black					1	Header Male Blades	All	UL94 V-0	Press-Fit	0.076 Ám	3 Áin	3 Power	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.05
		10	$ 3.61
		25	$ 3.59
		50	$ 3.55
	Tape & Reel (TR)	150	$ 2.28

Description

General part information

ELCON Mini Series

2 Connector Header, Male Blades Through Hole Black
