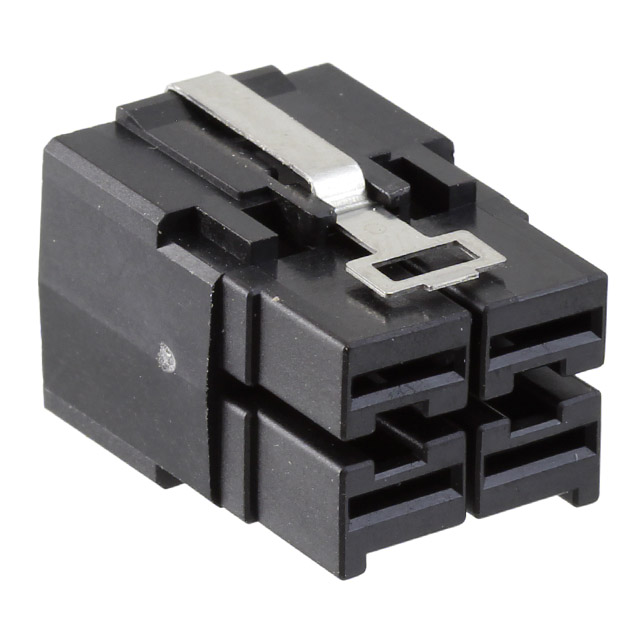

2173200-1
ActiveTE Connectivity Raychem Cable Protection
POWER TO THE BOARD 2X2 POWER UNSHIELDED CABLE-PLUG
Deep-Dive with AI
Search across all available documentation for this part.
2173200-1
ActiveTE Connectivity Raychem Cable Protection
POWER TO THE BOARD 2X2 POWER UNSHIELDED CABLE-PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2173200-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Blade Socket |
| Fastening Type | Latch Lock |
| Features | Panel Lock |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.307 in |
| Pitch [x] | 7.8 mm |
| Row Spacing | 0.246 in |
| Row Spacing | 6.25 mm |
| Stacking Direction | Top to Bottom and Side to Side |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ELCON Mini Series
4 Position, Receptacle, Housing, Crimp, Wire-to-Wire, Silver (Ag), UL 94V-0, 7.8 mm [.307 in] Centerline, 2 Row, 60 VAC, Wire & Cable, ELCON Mini
