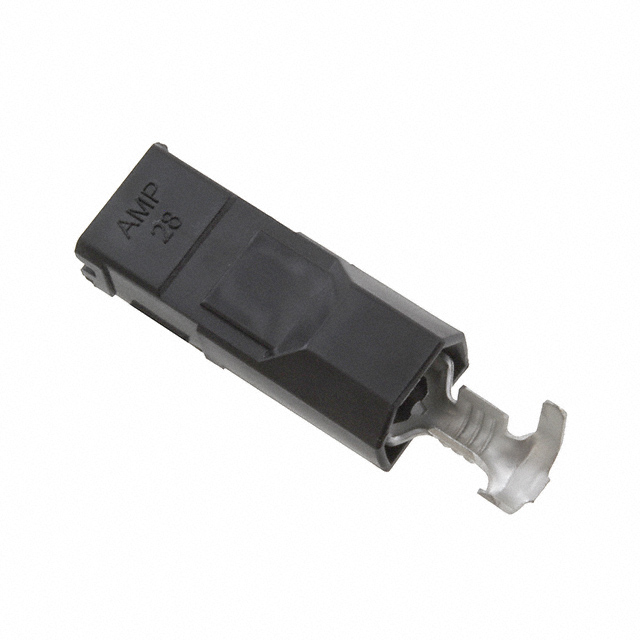

521011-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-POD 250 ASSY REC 18-14 AWG TPBR
Deep-Dive with AI
Search across all available documentation for this part.
521011-2
ActiveTE Connectivity Raychem Cable Protection
ULTRA-POD 250 ASSY REC 18-14 AWG TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 521011-2 |
|---|---|
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [Max] [diameter] | 0.17 " |
| Insulation Diameter [Max] [diameter] | 4.32 mm |
| Insulation Diameter [Min] [diameter] | 2.79 mm |
| Insulation Diameter [Min] [diameter] | 0.11 " |
| Length - Overall | 34.67 mm |
| Length - Overall [x] | 1.365 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 2000 | $ 0.22 | ||
| 4000 | $ 0.22 | |||
| 6000 | $ 0.20 | |||
| 10000 | $ 0.18 | |||
Description
General part information
Ultra-Pod 250 Series
Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Ultra-Pod 250
