520974-1

Active

TE Connectivity Raychem Cable Protection

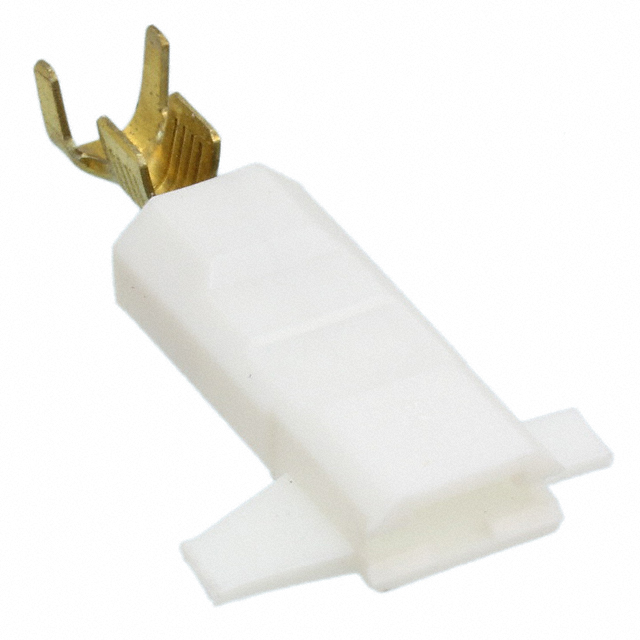

CONN QC RCPT 10-14AWG 0.250

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

520974-1

Active

TE Connectivity Raychem Cable Protection

CONN QC RCPT 10-14AWG 0.250

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	520974-1

Color	Natural
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [Max] [diameter]	0.18 in
Insulation Diameter [Max] [diameter]	4.57 mm
Insulation Diameter [Min] [diameter]	3.3 mm
Insulation Diameter [Min] [diameter]	0.13 in
Length - Overall [x]	1.37 in
Length - Overall [x]	34.8 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	14 AWG
Wire Gauge [Min]	10 AWG

Ultra-Pod 250 Series

Part	Tab Thickness	Tab Thickness	Terminal Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Color	Gender	Contact Finish	Termination	Insulation	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Contact Material	Tab Width	Tab Width	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Overall
TE Connectivity Raychem Cable Protection 520974-2	0.032 in	0.81 mm	Standard	3.3 mm	0.18 in	0.13 in	4.57 mm	Natural	Female	Tin	Crimp	Fully Insulated	1.37 in	34.8 mm	10 AWG	14 AWG	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 521411-2	0.032 in	0.81 mm	Angled - 90° Flag					Natural	Female	Tin	Crimp	Fully Insulated			17.5 AWG	22 AWG	Free Hanging (In-Line) Right Angle	Brass	6.35 mm	0.25 in	1.27 mm	2.54 mm	2.54 mm	1.27 mm
TE Connectivity Raychem Cable Protection 521282-2	0.032 in	0.81 mm	Angled - 90° Flag					Natural	Female	Tin	Crimp	Fully Insulated			14 AWG	18 AWG	Free Hanging (In-Line) Right Angle	Brass	6.35 mm	0.25 in			4.06 mm	2.79 mm	0.11 in	0.16 in
TE Connectivity Raychem Cable Protection 521567-2	0.032 in	0.81 mm	Standard	2.79 mm	0.17 "	0.11 "	4.32 mm	Natural	Female	Tin	Crimp	Fully Insulated	1.366 "	34.7 mm	14 AWG	18 AWG	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 520974-1	0.032 in	0.81 mm	Standard	3.3 mm	0.18 in	0.13 in	4.57 mm	Natural	Female		Crimp	Fully Insulated	1.37 in	34.8 mm	10 AWG	14 AWG	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 521087-1	0.032 in	0.81 mm	Angled - 90° Flag					Black	Female	Nickel	Crimp	Fully Insulated			14 AWG	18 AWG	Free Hanging (In-Line) Right Angle	Steel	6.35 mm	0.25 in			4.06 mm	2.79 mm	0.11 in	0.16 in
TE Connectivity Raychem Cable Protection 521011-2	0.032 in	0.81 mm	Standard	2.79 mm	0.17 "	0.11 "	4.32 mm	Black	Female	Tin	Crimp	Fully Insulated	1.365 in		14 AWG	18 AWG	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in							34.67 mm
TE Connectivity Raychem Cable Protection 521011-1	0.032 in	0.81 mm	Standard	2.79 mm	0.17 "	0.11 "	4.32 mm	Black	Female	Nickel	Crimp	Fully Insulated	1.365 in		14 AWG	18 AWG	Free Hanging (In-Line)	Steel	6.35 mm	0.25 in							34.67 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

Ultra-Pod 250 Series

0.250" (6.35mm) Quick Connect Female 10-14 AWG Crimp Connector Fully Insulated
