Technical Specifications
Parameters and characteristics for this part
| Specification | 521087-1 |
|---|---|
| Color | Black |
| Contact Finish | Nickel |
| Contact Material | Steel |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter [Max] | 4.06 mm |
| Insulation Diameter [Max] | 0.16 in |
| Insulation Diameter [Min] | 0.11 in |
| Insulation Diameter [Min] | 2.79 mm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.76 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.71 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.56 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.46 | |||
| 2500 | $ 0.44 | |||
| Tape & Reel (TR) | 7200 | $ 0.40 | ||
| 14400 | $ 0.38 | |||
Description
General part information

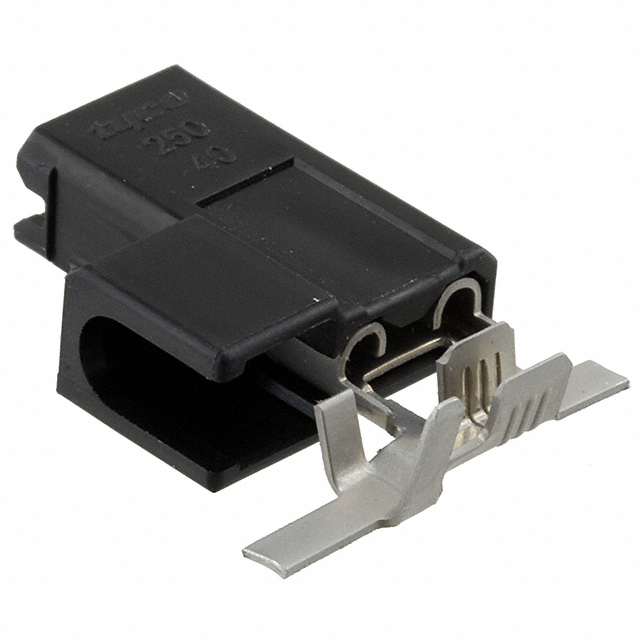

Ultra-Pod 250 Series
Quick Disconnect Receptacle, 18 – 14 AWG, .82 – 2.08 mm² Wire, 6.35 mm [.25 in] Tab Width, Flag, Steel, Nickel Plating, Strip/Reel, Ultra-Pod 250
