520974-2

Active

TE Connectivity Raychem Cable Protection

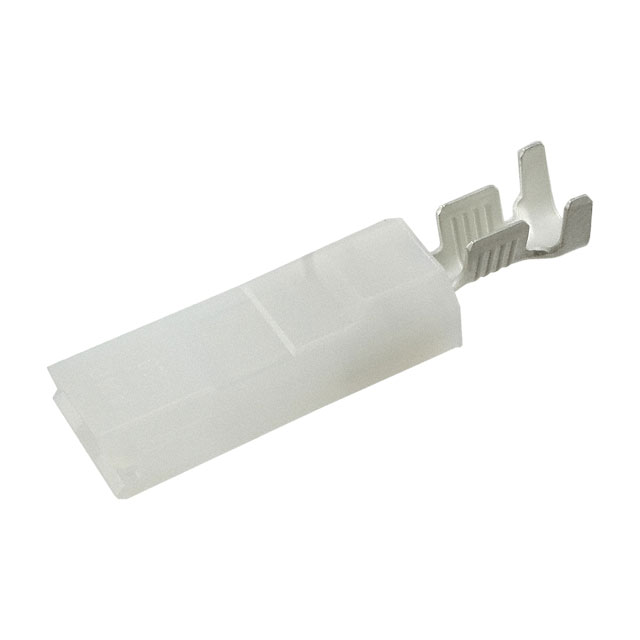

QUICK DISCONNECT TERMINAL 10-14AWG BRASS NATURAL F 34.8MM TIN T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsConnector, AMPOWER Wave Crimp Wire Tap with .250 Faston Tab UL_CERT_E66717_19901010_C1 +4

520974-2

Active

TE Connectivity Raychem Cable Protection

QUICK DISCONNECT TERMINAL 10-14AWG BRASS NATURAL F 34.8MM TIN T/R

Deep-Dive with AI

DocumentsConnector, AMPOWER Wave Crimp Wire Tap with .250 Faston Tab UL_CERT_E66717_19901010_C1 +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	520974-2

Color	Natural
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter [Max] [diameter]	0.18 in
Insulation Diameter [Max] [diameter]	4.57 mm
Insulation Diameter [Min] [diameter]	3.3 mm
Insulation Diameter [Min] [diameter]	0.13 in
Length - Overall [x]	1.37 in
Length - Overall [x]	34.8 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	14 AWG
Wire Gauge [Min]	10 AWG

Ultra-Pod 250 Series

Part	Tab Thickness	Tab Thickness	Terminal Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Color	Gender	Contact Finish	Termination	Insulation	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Contact Material	Tab Width	Tab Width	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Overall
TE Connectivity Raychem Cable Protection 520974-2	0.032 in	0.81 mm	Standard	3.3 mm	0.18 in	0.13 in	4.57 mm	Natural	Female	Tin	Crimp	Fully Insulated	1.37 in	34.8 mm	10 AWG	14 AWG	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 521411-2	0.032 in	0.81 mm	Angled - 90° Flag					Natural	Female	Tin	Crimp	Fully Insulated			17.5 AWG	22 AWG	Free Hanging (In-Line) Right Angle	Brass	6.35 mm	0.25 in	1.27 mm	2.54 mm	2.54 mm	1.27 mm
TE Connectivity Raychem Cable Protection 521282-2	0.032 in	0.81 mm	Angled - 90° Flag					Natural	Female	Tin	Crimp	Fully Insulated			14 AWG	18 AWG	Free Hanging (In-Line) Right Angle	Brass	6.35 mm	0.25 in			4.06 mm	2.79 mm	0.11 in	0.16 in
TE Connectivity Raychem Cable Protection 521567-2	0.032 in	0.81 mm	Standard	2.79 mm	0.17 "	0.11 "	4.32 mm	Natural	Female	Tin	Crimp	Fully Insulated	1.366 "	34.7 mm	14 AWG	18 AWG	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 520974-1	0.032 in	0.81 mm	Standard	3.3 mm	0.18 in	0.13 in	4.57 mm	Natural	Female		Crimp	Fully Insulated	1.37 in	34.8 mm	10 AWG	14 AWG	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 521087-1	0.032 in	0.81 mm	Angled - 90° Flag					Black	Female	Nickel	Crimp	Fully Insulated			14 AWG	18 AWG	Free Hanging (In-Line) Right Angle	Steel	6.35 mm	0.25 in			4.06 mm	2.79 mm	0.11 in	0.16 in
TE Connectivity Raychem Cable Protection 521011-2	0.032 in	0.81 mm	Standard	2.79 mm	0.17 "	0.11 "	4.32 mm	Black	Female	Tin	Crimp	Fully Insulated	1.365 in		14 AWG	18 AWG	Free Hanging (In-Line)	Brass	6.35 mm	0.25 in							34.67 mm
TE Connectivity Raychem Cable Protection 521011-1	0.032 in	0.81 mm	Standard	2.79 mm	0.17 "	0.11 "	4.32 mm	Black	Female	Nickel	Crimp	Fully Insulated	1.365 in		14 AWG	18 AWG	Free Hanging (In-Line)	Steel	6.35 mm	0.25 in							34.67 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	2000	$ 0.22
		4000	$ 0.21
		8000	$ 0.19
Digikey	Cut Tape (CT)	1	$ 0.35
		10	$ 0.32
		25	$ 0.32
		50	$ 0.31
		100	$ 0.26
		250	$ 0.24
		500	$ 0.23
		1000	$ 0.20
	Tape & Reel (TR)	2000	$ 0.20
		4000	$ 0.20
		6000	$ 0.18
		10000	$ 0.16

Description

General part information

Ultra-Pod 250 Series

Quick Disconnect Receptacle, 14 – 10 AWG, 2.08 – 5.26 mm² Wire, 6.35 mm [.25 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Ultra-Pod 250

Documents

Technical documentation and resources

Connector, AMPOWER Wave Crimp Wire Tap with .250 Faston Tab

Product Specifications

UL_CERT_E66717_19901010_C1

Agency Approvals

Application Specification - Ultra-Pod FASTON* Fully Insulated Receptacles and Tabs

Product Specifications

520974-2

Deep-Dive with AI

520974-2

Deep-Dive with AI

Technical Specifications

Ultra-Pod 250 Series

Pricing

Description

Ultra-Pod 250 Series

Documents

Connector, AMPOWER Wave Crimp Wire Tap with .250 Faston Tab

UL_CERT_E66717_19901010_C1

Application Specification - Ultra-Pod FASTON* Fully Insulated Receptacles and Tabs

Ultra-Fast and Ultra Fast Plus

Insulated copper alloy quick connector

Ultra-Pod Fully Insulated FASTON* Receptacle and Tab

Ultra-Pod 250 Series
